Description

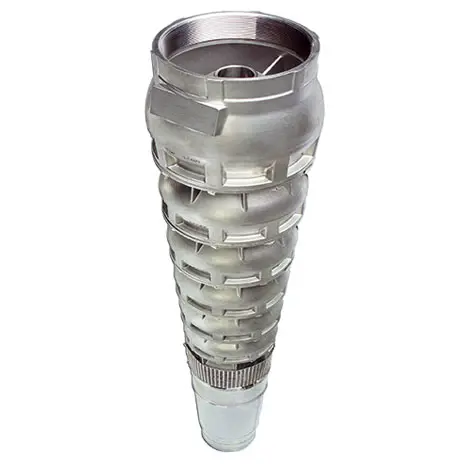

The Z8-ZR8 series is designed for use in 8” wells. The pump is built in stainless steel and resists corrosion even in more aggressive environments thanks to the ZR8 version in Duplex.
This design feature boasts a “dynamic” wear ring which reduces hydraulic losses to a minimum and prevents the pump from blocking during stand-by periods. Meaning the pump is ideal for use in mining, water supply from deep wells and pressure boosting and water distribution applications in municipal and industrial systems.
Z8: AISI 304
ZR8: DUPLEXAll Z8, ZR8 pumps can be coupled to NEMA standard motors.
-
Advantages
Product Features
- High efficiency design including dynamic wear rings that reduces hydraulic losses
- Available fully in stainless steel AISI 304 or Duplex
- Delivery: up to 180 m3/h
- Head: up to 550 m
- Max immersion depth: 350 m
-
Suitability
Borehole Pumps
-
Technical Features
General Specification Z8, ZR8 Borehole Pumps in AISI 304/ Duplex for 8″ wells Delivery up to 180 m³/h Head up to 550 m Power supply three-phase 50 and 60 Hz Power from 5,5 kW up to 150 kW Maximum operating pressure 55 bar Temperature of pumped liquid to 30 °C Maximum immersion depth 350 m
