Description
Volute casing pumps acc. to ISO 5199
Single Stage Pumps – LS, LC

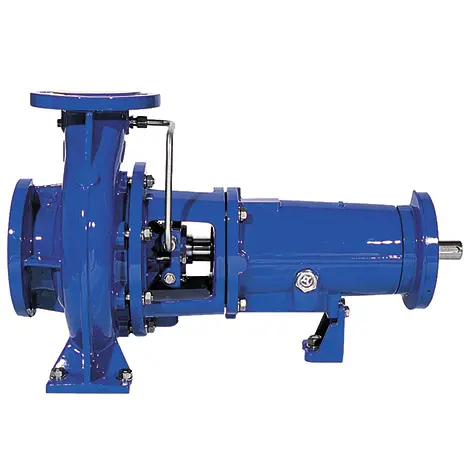

Horizontal single stage endsuction pump with closed impeller and oil lubricated bearing frame.
Process design, back pull out for easy maintenance. Disassembly of impeller and bearing frame without dismantling of the pump casing and motor possible (spacer type coupling required). Suction branch axial, discharge radial upwards (optional horizontal possible). Drive by electric motor and flexible coupling arranged on common base plate. -
Advantages
Product Features
- Design according to ISO 5199
- Back pull out design for easy maintenance
- Delivery: up to 4,600 m³/h
- Head: up to 100 m
-
Suitability
End Suction Pumps
-
Technical Features
General Specification LS, LC Delivery up to 4,600 m³/h Head up to 100 m Power supply three-phase 50 and 60 Hz Maximum operating pressure 25 bar Temperature of pumped liquid from -10 °C to 180 °C
