Description

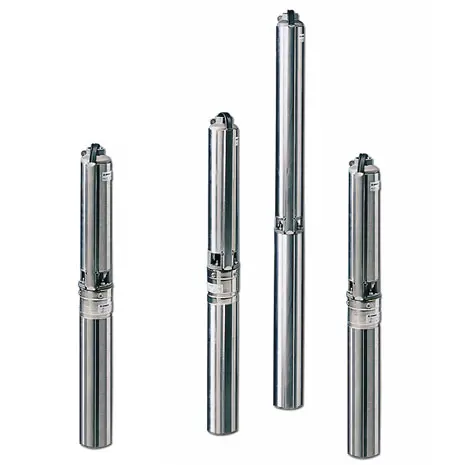

The e-GS series is a robust 4” pump designed for long life. It’s built mainly in stainless steel, has casted discharge and a special floating impeller design to enhance the wear resistance and to maintain the performance over time.
The e-GS series is designed specially to be used in 4” wells and its ideal for use in irrigation systems, pressure boosting, geothermal systems and fountain applications.
All e-GS pumps can be coupled to 4” NEMA standard motors.
-
Advantages
Product Features
- 4″ borehole pump
- Designed for long life with casted discharge and floating impeller design
- Delivery: up to 22 m3/h
- Head: up to 310 m
-
Suitability
Borehole Pumps
-
Technical Features
General Specification e-GS Submersible pumps for 4” wells Delivery up to 22 m³/h Head up to 310 m Power supply both single and three-phase 50 and 60 Hz Power from 0.25 kW up to 7.50 kW Temperature of pumped liquid to 35°C Maximum immersion depth 300 m
