Description

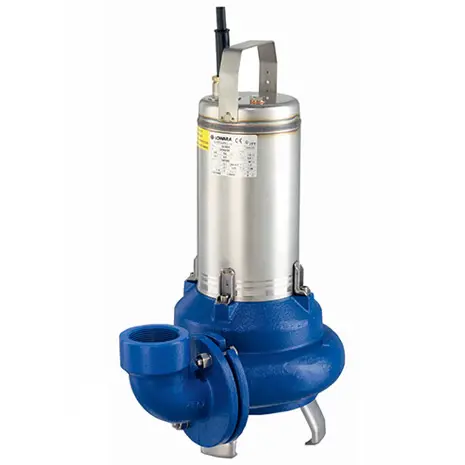

DL series submersible pumps, made of cast iron and stainless steel, are available with single channel or vortex impeller (DLV).
Designed to handle solids-laden wastewater, with up to 20 m head and 100 m³/h capacity. 0,6 kW (0.8 HP) to 4 kW (5.5 HP) rated power. Solids handled up to 65 mm in diameter.
-
Advantages
Product Features
- Up to 65 mm free passage
- Delivery: up to 42 m³/h
- Head: up to 21 m
-
Suitability
Vortex Pumps
-
Technical Features
General Specification DL Submersible pumps with solids-laden wastewater Delivery up to 42 m³/h Head up to 21 m Power supply both single and three-phase 50 and 60 Hz Power from 0.60 kW up to 1.50 kW Temperature of pumped liquid to 50 °C Maximum immersion depth 5 m Free passage up to 50 mm
