Ksb – SISTO-RSK

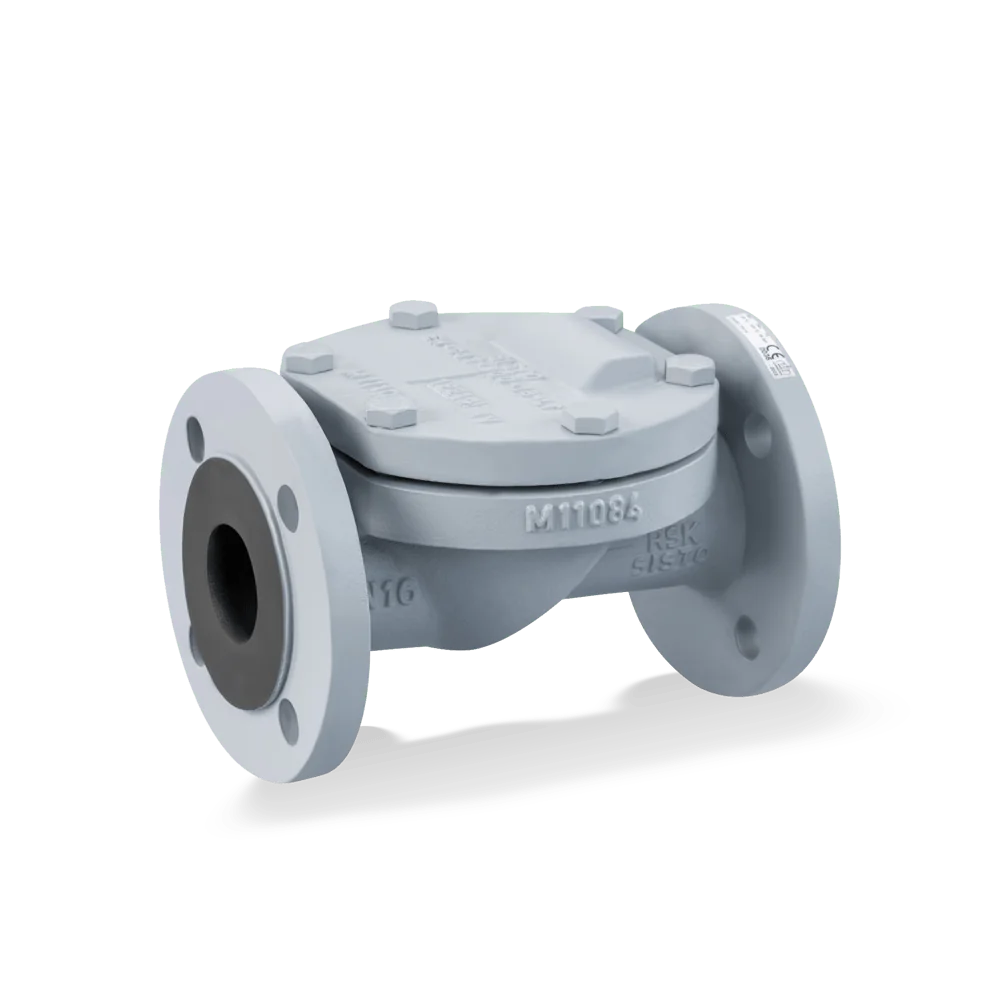

Swing check valve to DIN/EN with flanged ends, in straight-way pattern, full bore, body with coating or lining, slanted-seat design, static sealing to atmosphere; with soft rubber encapsulated pre-loaded valve disc featuring short travel to closure.
-
Description
Main Applications
– Mining
– General irrigation systems
– Chemical industry
– Disposal
– Fire-fighting systems
– Domestic water supply
– Nuclear power stations
– Waste water treatment plants
– Fossil-fuelled power stations
– Seawater desalination
– Process engineering
– Water treatment
– Water supply systems -
Advantages
– Streamlined body design provides low flow resistance coefficient.
– Short stabilisation distances
– Valve hydraulics without dead volume ensure optimum conditions for high-purity fluids.
– Static sealing to atmosphere
– Pre-loaded valve disc and short travel to closure prevent pressure surges.
– Maintenance-free
– Soft rubber encapsulated valve disc ensures reliable shut-off. -
Suitability
Swing check valve
-
Technical Features
- Nominal pressure
- PN 16
- Max. nominal size
- DN 150
- Maximum allowable fluid temperature
- 120 °C
-
