Ksb – SERIE 2000

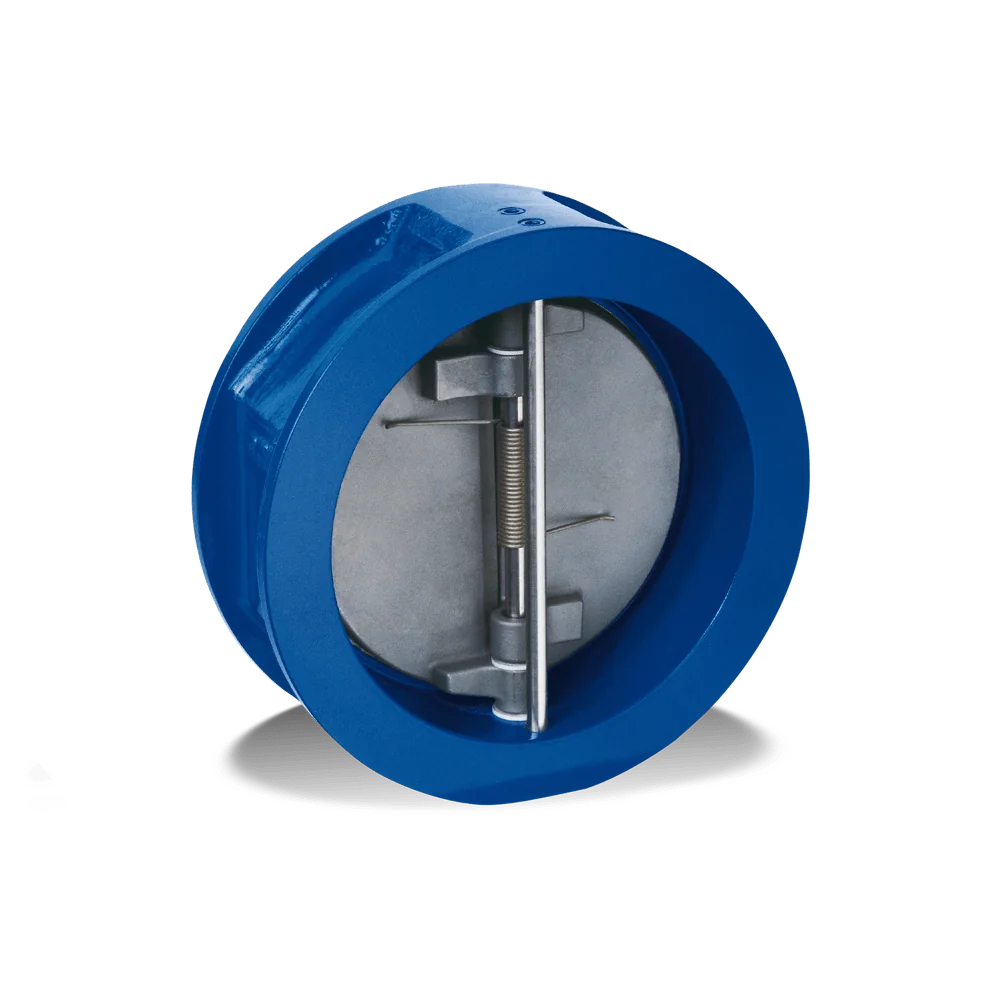

Dual-plate check valve with single-piece, wafer-type body made of lamellar graphite cast iron, nodular cast iron, steel or stainless steel; metal/elastomer-seated or metal/metal-seated, maintenance-free, connections to EN, ASME or JIS.
-
Description
Main Applications
– Air-conditioning systems
– Water supply systems
– Process engineering
– Industrial recirculation systems
– General irrigation systems
– Water treatment
– Seawater desalination/reverse osmosis
– Chemical industry
– Paper industry / pulp industry
– Petrochemical industry
– Shipbuilding
– Sugar industry
– Hot-water heating systems -
Advantages
– Low weight and compact design.
– No additional support of piping required.
– No special tools required for installation.
– Very long service life and excellent corrosion resistance.
– Design prevents friction and resulting damage to seat/disc interface. -
Suitability
Swing check valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, PN 16, PN 25
- Max. nominal size
- DN 600
- Maximum allowable fluid temperature
- 538 °C
-
