PROFIN SI3

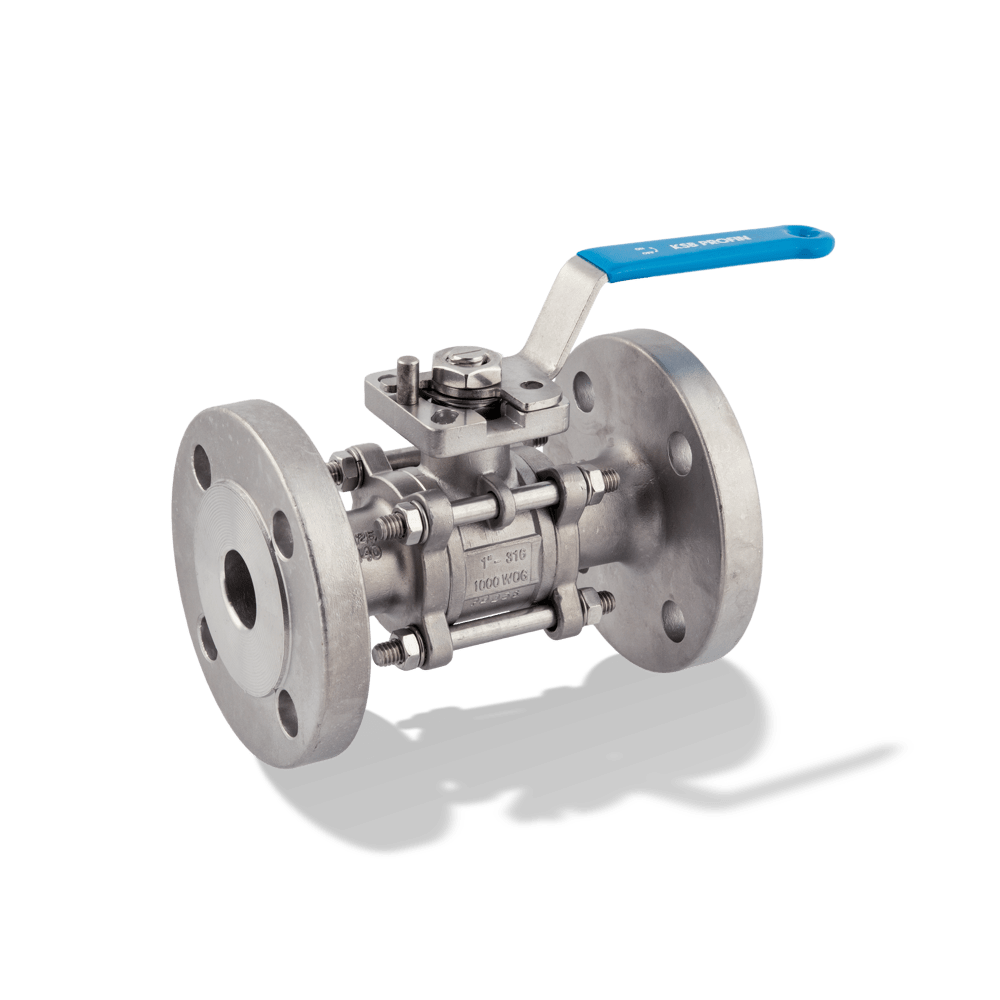

Ball valve to ANSI/ASME with flanged ends, threaded ends (BSP) or long butt weld ends, three-piece body, full bore, solid ball, top flange to ISO 5211, anti-static design, blowout-proof shaft, spring-loaded shaft seal, body made of stainless steel.
-
Description
Main Applications
– Building services
– Industrial plants
– Water
– Air-conditioning systems
– Chemical industry
– Cooling circuits
– Pressure boosting
– Process engineering
– Snow-making systems
– Swimming pools
– Washing plants
– Water supply systems -
Advantages
– Top flange to ISO 5211 for easy mounting of all actuator types.
– Square shaft end for easy mounting of all actuator types.
– Spring-loaded shaft seal
– Anti-static design prevents electrostatic charging during operation.
– Integral shoulder prevents blow-out.
– Valve can be locked in open or closed position.
– Minimum pressure loss by hydraulically favourable flow passage -
Suitability
Ball valve
-
Technical Features
- Nominal pressure
- PN 40
- Max. nominal size
- DN 100
- Maximum allowable fluid temperature
- 150 °C
-
