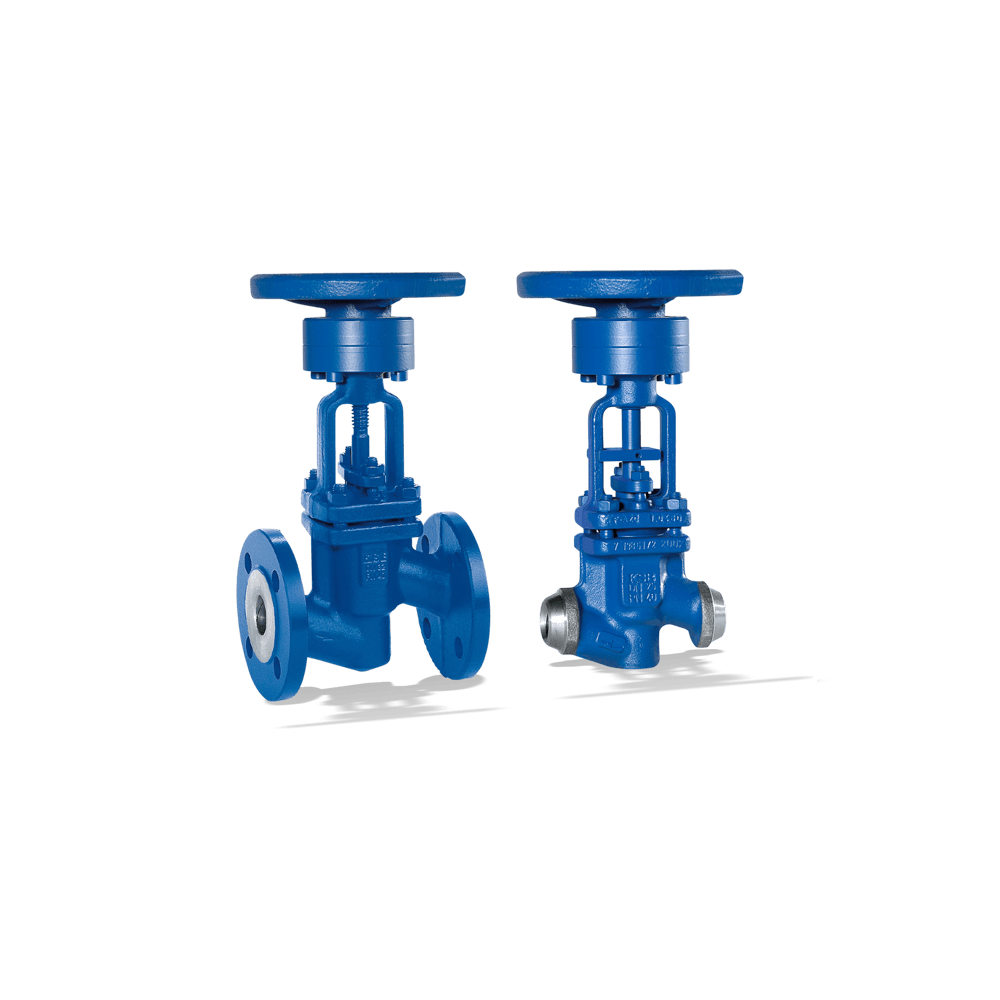

Ksb – NORI 40 ZXLF/ZXSF
Globe valve to DIN/EN with flanged ends (ZXLF), butt weld ends or socket weld ends (ZXSF), with gland packing, with on/off disc or throttling plug, non-rotating stem, integrated position indicator, seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
-
Description
Main Applications
– Process engineering
– Chemical industry
– Petrochemical industry
– Fossil-fuelled power stations
– Boiler feed applications
– Boiler recirculation
– Condensate transport
– Descaling units
– Snow-making systems
– Paper industry / pulp industry
– Sugar industry
– Shipbuilding
– Mining
– Nuclear power stations -
Advantages
– Standard DIN/ISO top flange at the yoke head simplifies actuator mounting. No modifications required. No need to dismantle pressure-retaining components.
– Long service life and high functional reliability- – of the gland packing due to non-rotating stem with burnished shank.
– Threaded bush runs in needle bearings for smooth actuation.
– Hard-faced valve seat made of wear-resistant and corrosion-resistant materials.– Reliable sealing. Bonnet gasket fully confined to prevent creep.
– Additional safety and blow-out protection by standard back seat.
– Easy to repair due to corrosion-protected bolts/screws and nuts -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 40, PN 25, PN 10, PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 450 °C
-
