Ksb – NORI 160 ZXL/ZXS

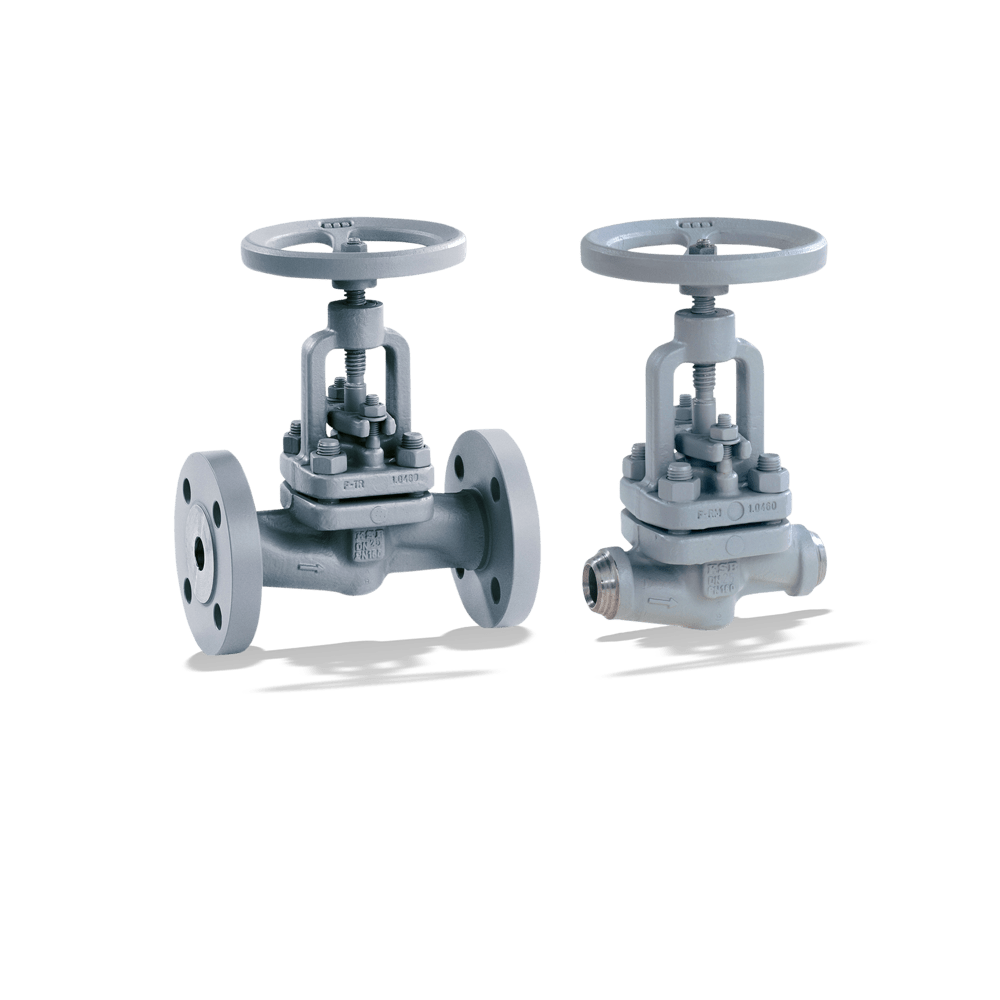

Globe valve to DIN/EN with flanged ends (ZXL), butt weld ends or socket weld ends (ZXS), with gland packing, with on/off disc or throttling plug, rotating stem, seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.
-
Description
Main Applications
– Fossil-fuelled power stations
– Boiler feed applications
– Process engineering
– Petrochemical industry
– Chemical industry
– Shipbuilding
– Paper industry / pulp industry
– Sugar industry
– Condensate transport
– Descaling units
– Snow-making systems
– Mining
– Nuclear power stations -
Advantages
– Additional features ensure safe sealing to atmosphere:
- – Serrated bonnet gasket, fully confined to prevent creep.
– Graphite gland packing with packing end rings.– Additional safety and blow-out protection by standard back seat.
– Long service life and high functional reliability- – of the gland packing due to stem with burnished shank.
– Hard-faced valve seat made of wear-resistant and corrosion-proof 17 % chrome steel or Stellite.– Easy to repair due to corrosion-protected bolts/screws and nuts
– Threaded bush free from non-ferrous metals, for versatile application. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 63, PN 100, PN 160
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 550 °C
