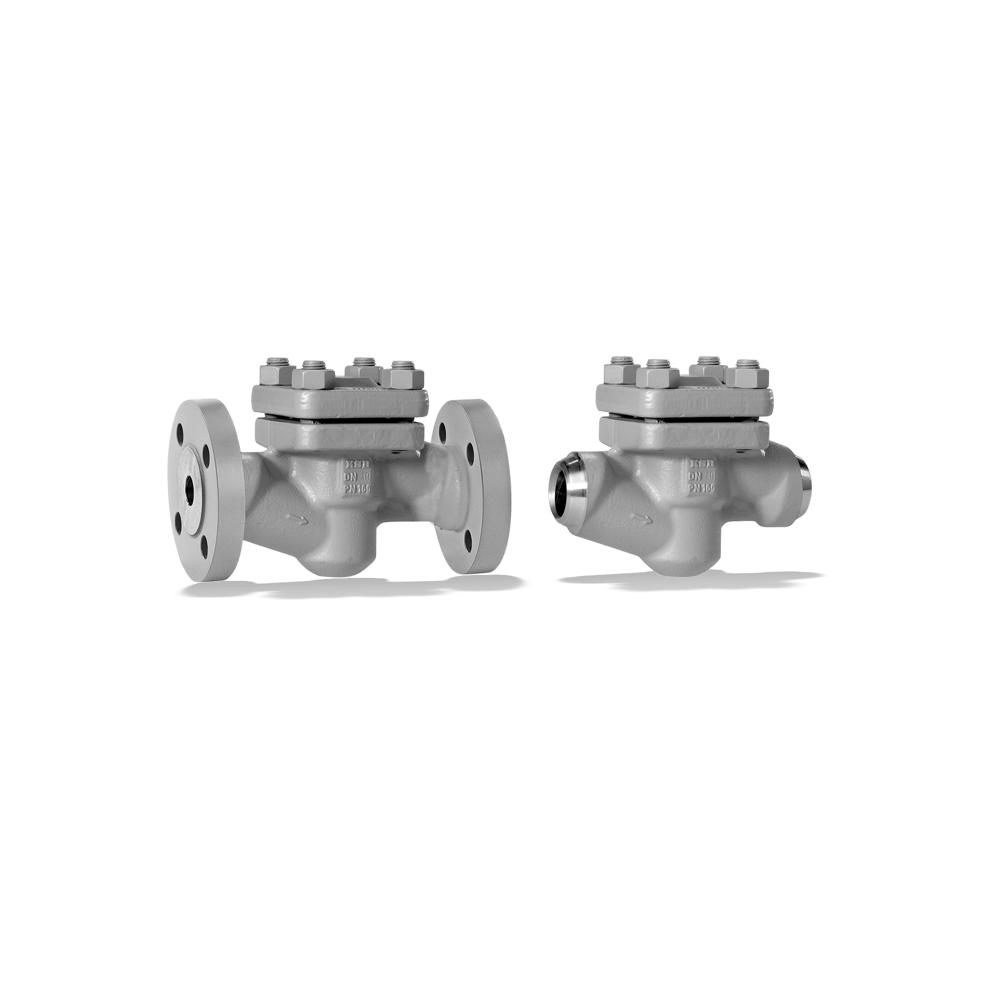

NORI 160 RXL/RXS
Lift check valve to DIN/EN with flanged ends (RXL), butt weld ends or socket weld ends (RXS), check disc with closing spring, seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.
-
Description
Main Applications
– Fossil-fuelled power stations
– Boiler feed applications
– Boiler recirculation
– Process engineering
– Petrochemical industry
– Chemical industry
– Shipbuilding
– Paper industry / pulp industry
– Sugar industry
– Condensate transport
– Descaling units
– Snow-making systems
– Mining
– Nuclear power stations -
Advantages
– Reliable sealing to atmosphere: serrated cover gasket fully
confined to prevent creep.
– Hard-faced valve seat made of wear-resistant and corrosion-proof 17 % chrome steel or Stellite for long service life and high functional reliability.
– Easy to repair due to corrosion-protected bolts/screws and nuts -
Suitability
Lift check valve
-
Technical Features
- Nominal pressure
- PN 63, PN 100, PN 160
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 550 °C
-
