Ksb – HERA-SH

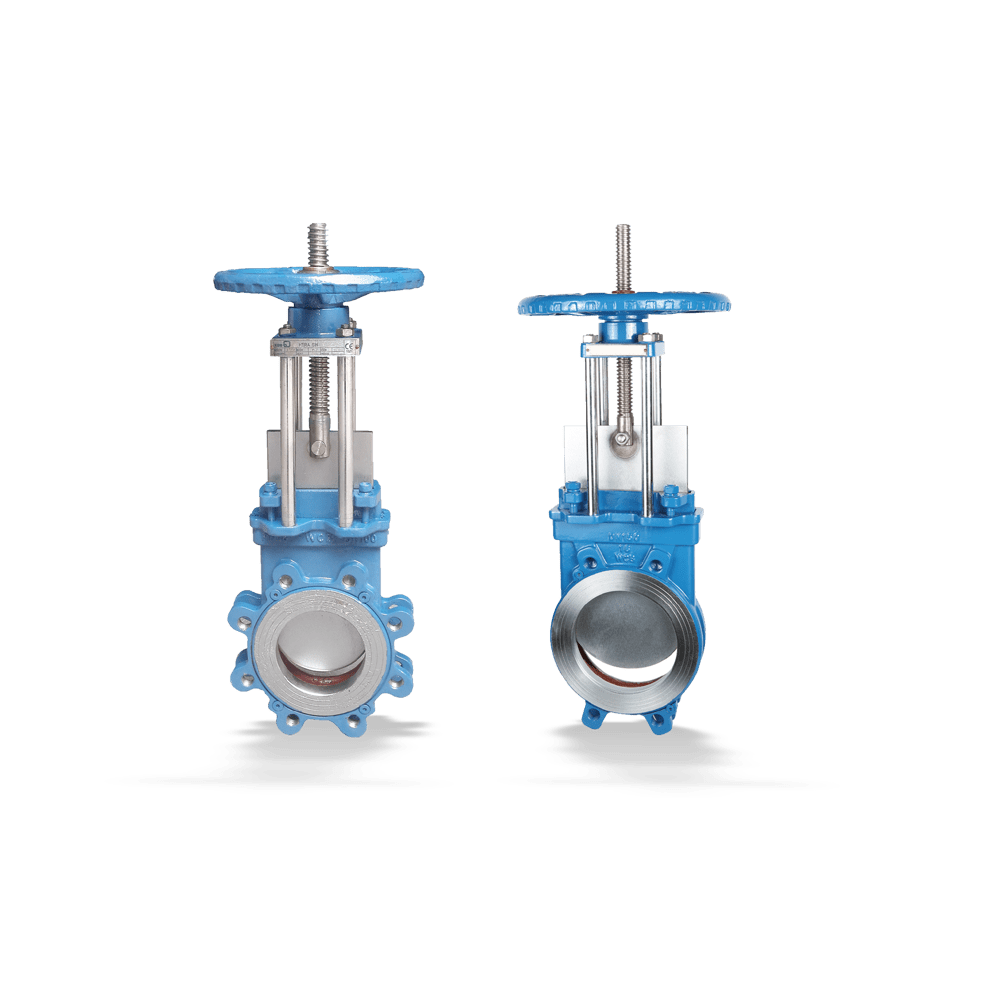

Knife gate valve to ANSI/ASME with full-lug single-piece body made of carbon steel or stainless steel; uni-directional, with gland packing, rising stem, non-rising handwheel.
-
Description
Main Applications
– Paper industry / pulp industry
– Waste water treatment plants
– Chemical industry
– Water treatment
– Food industry / beverage industry -
Advantages
– In-situ valve maintenance
- – Externally accessible gland packing, so packing rings can be replaced without removing the valve from the piping.
– Long service life
- – Blade bottom edge curved for high cutting force. Smooth blade surface due to precision grinding and hard chromium plating, for increased abrasion resistance and long service life
– O-ring-supported self-adjusting flexible seat with high abrasion resistance and long service life.– Reliable sealing
- – Retaining ring can be adjusted during maintenance work to restore tightness
– Easy actuation
- – Stem nut supported by needle bearing for lower actuating torque and ease of actuation
-
Suitability
Gate valve
-
Technical Features
- Nominal pressure
- CL 150, PN 10, PN 16
- Max. nominal size
- DN 1000
- Maximum allowable fluid temperature
- 100 °C
-
