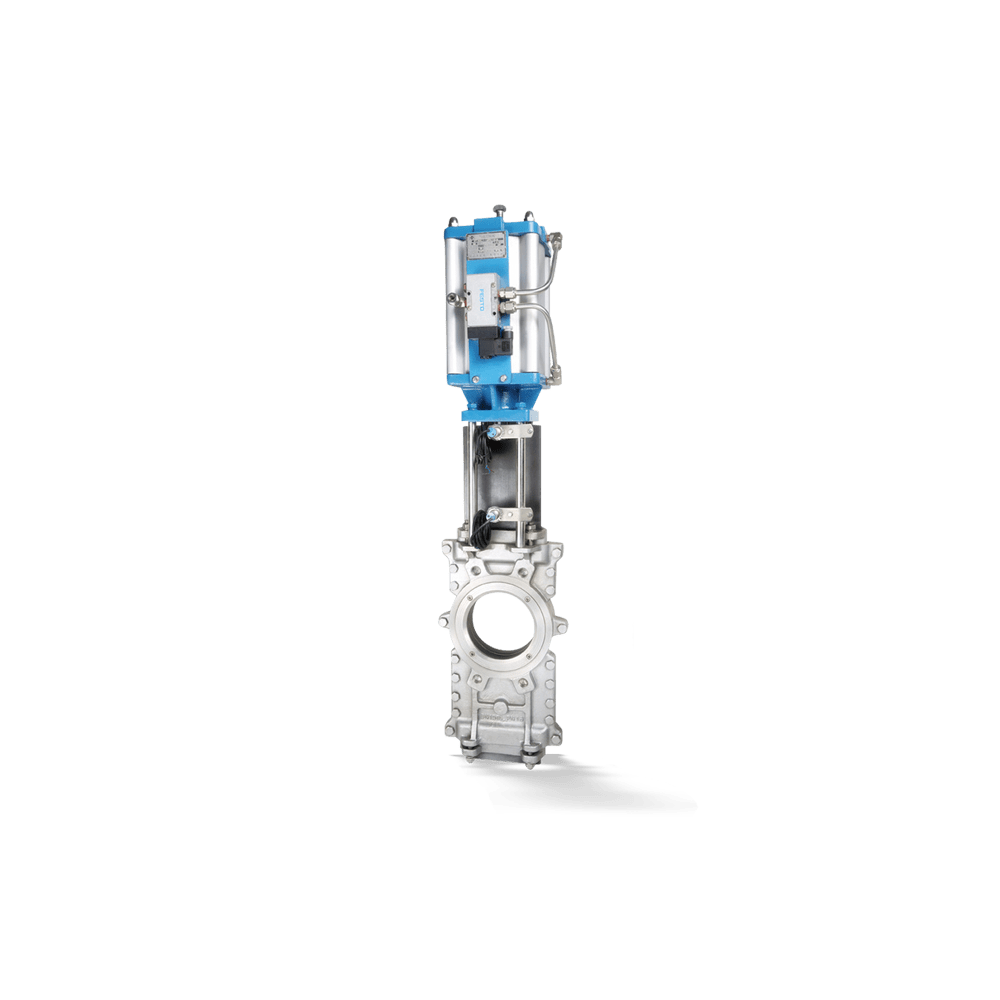

HERA-BHT
Knife gate valve to ANSI/ASME with semi-lug body made of carbon steel or stainless steel, bi-directional, with gland packing, through-going blade, rising stem, non-rising handwheel, robust yoke for actuator mounting as standard.
-
Description
Main Applications
– Paper industry / pulp industry
– Solids separation
– Hydraulic repulping
– Transport of mining slurry
– Drainage systems
– Sludge disposal
– Sludge processing
– Transport of residues
– Waste water treatment plants -
Advantages
– Cast steel body withstands elevated fluid pressures.
– Yoke replaceable to accommodate different actuators quickly and easily.
– Gate valve bore is identical with nominal pipe diameter, resulting in a low flow resistance and process cost savings.
– Two-piece body without dead volumes: no downtime and maintenance costs caused by the removal of solids deposits.
– Reliable sealing: O-ring-supported self-adjusting flexible seat with high abrasion resistance and long service life.
– Suitable for universal use. Metal-seated and soft-seated (PTFE and EPDM) designs available to suit a variety of processes. -
Suitability
Gate valve
-
Technical Features
- Nominal pressure
- CL 150, PN 10, PN 16
- Max. nominal size
- DN 600
- Maximum allowable fluid temperature
- 100 °C
-
