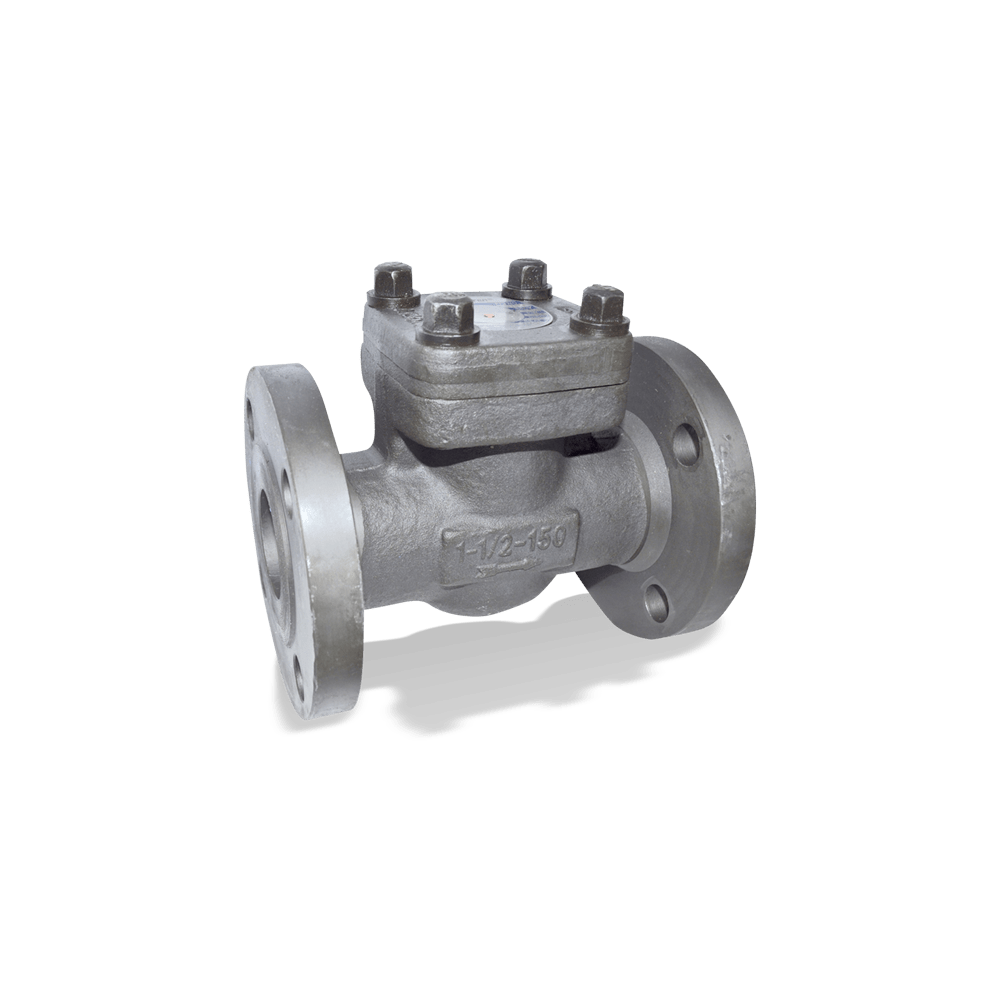

Ksb – ECOLINE SCF 150-600
Swing check valve to ANSI/ASME with flanged ends, forged steel A105, Trim 8 (Stellite/13 % chrome steel), reduced bore, with bolted cover, internally mounted hinge pin.
-
Description
Main Applications
– Boiler feed applications
– Fossil-fuelled power stations
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Process engineering -
Advantages
– Extended maintenance-free service life thanks to hard-facing applied to valve disc and seat ring by deposit welding
– Reliable sealing. Cover gasket fully confined to prevent creep.
– Long service life and high functional reliability
– Hard-faced body seat and solid disc seat made of wear-resistant and corrosion-proof materials for handling all kinds of corrosive and erosive fluids. -
Suitability
Swing check valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, CL 600
- Max. nominal size
- NPS 2
- Maximum allowable fluid temperature
- 593 °C
-
