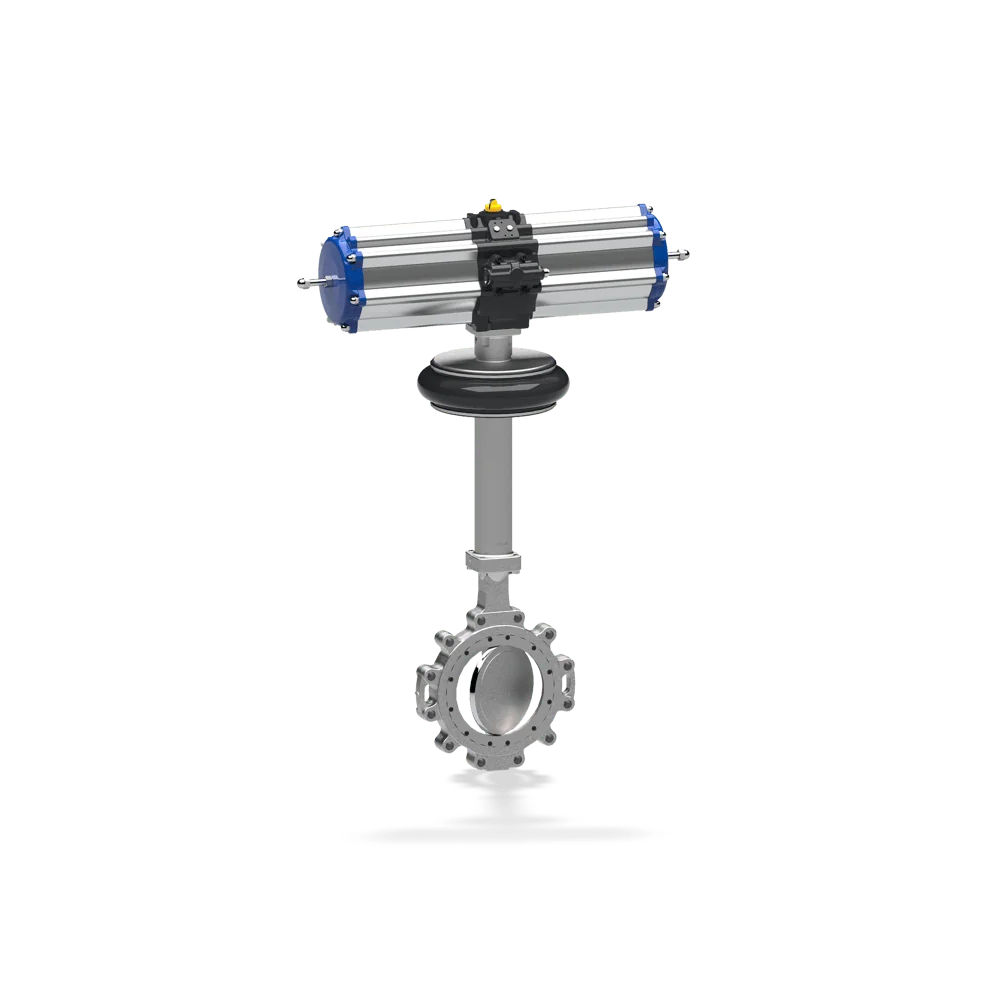

DANAÏS CRYO AIR
Double-offset butterfly valve for cryogenic applications, wafer-type body (T1), full-lug body (T4).
-
Description
Main Applications
– Gas pipelines
– Gas storage facilities
– Pipelines and tank farms
– Process engineering
– Air separation units
– Teisan Compact Nitrogen (TCN)
– Oxygen
– Hydrogen -
Advantages
– Tight shut-off
- – Tight shut-off in both directions, at ambient temperature as well as in cryogenic applications
– Easy to install
- – Lip seal at the lower end of the neck extension facilitates installation in any position ─ even “upside down”.
– Maintenance-free
- – No retightening of the cable gland
– No special tools required when replacing the sealing element– Long service life
- – Wear-free seat
– End stops protect the seat and valve disc should the actuator not be properly installed.– Suitable for oxygen, hydrogen and Teisan Compact Nitrogen (TCN)
- – Clean room assembly
– Grease-free assembly (or assembly using grease that meets EIGA requirements)
– Materials meet the requirements of the European Industrial Gases Association (EIGA) and are approved by the German Federal Institute for Materials Research / Wendell Hull & Associates, Inc. (WHA) -
Suitability
Butterfly valve
-
Technical Features
- Nominal pressure
- CL 150
- Max. nominal size
- DN 600
- Maximum allowable fluid temperature
- 200 °C
-
