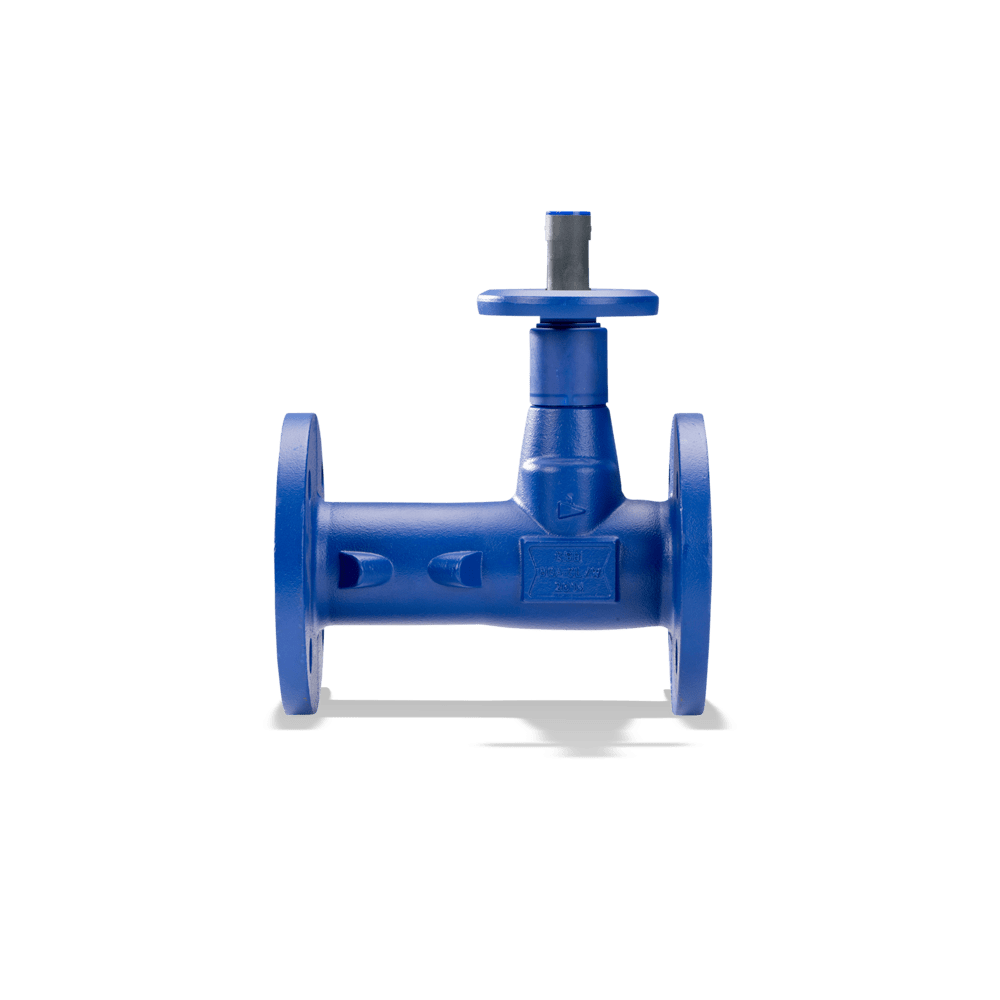

BOA-W
Globe valve to DIN/EN with flanged ends, standard face-to-face length to EN 558/1, slanted seat design with vertical bonnet, single-piece body, EPDM-encapsulated throttling plug, soft main and back seat, position indicator, locking device, travel stop, insulating cap with anti-condensation feature; maintenance-free; full insulation possible.
-
Advantages
– Minimum pressure loss by hydraulically favourable flow passage
– Fully equipped at no extra price: internal travel stop, position indicator and locking device included.
– Zero leakage and zero maintenance for life due to lubricated-for-life EPDM profile ring and single-piece body
– One model for shut-off and throttling due to EPDM-encapsulated throttling plug with linear characteristic
– Easy insulation due to simple body design and anti-condensation feature (insulating cap) -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 6, PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 120 °C
-
