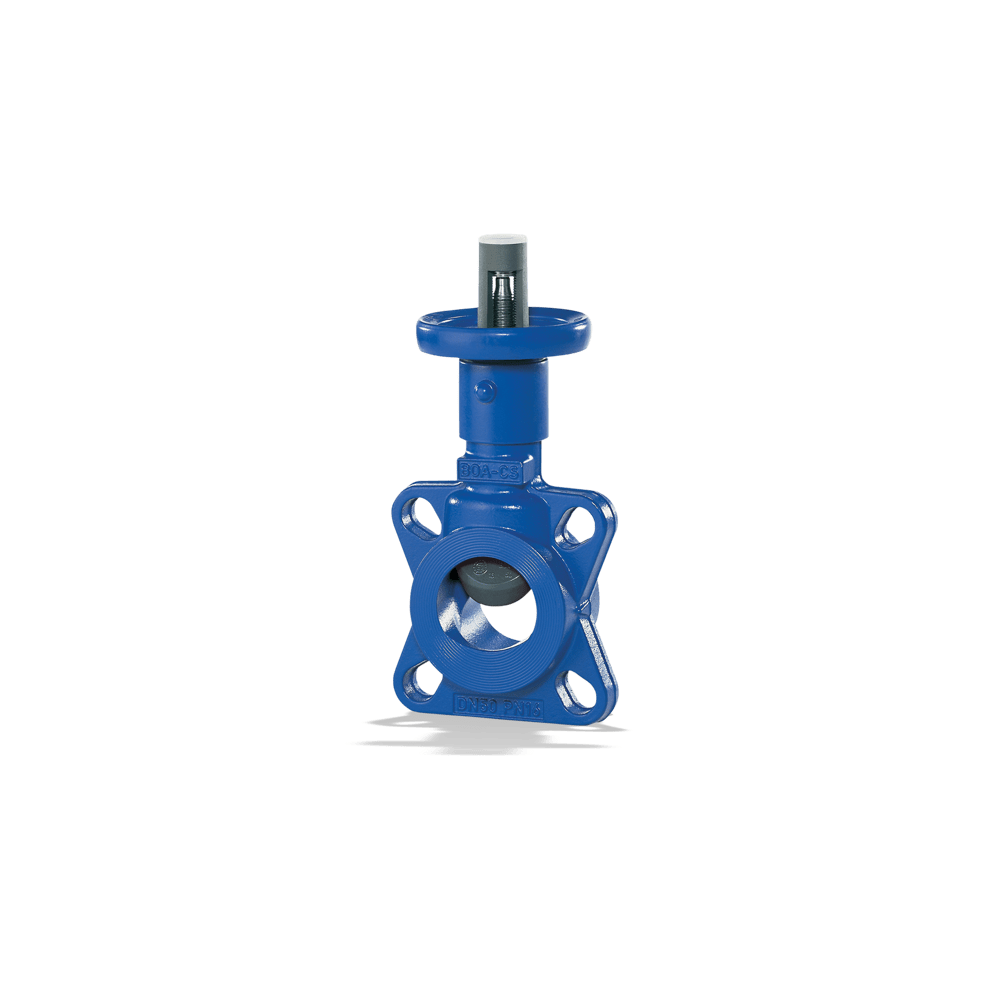

Ksb – BOA-SuperCompact
Globe valve to DIN/EN with wafer-type body, super-compact DN face-to-face length to EN 558/94, slanted seat design with vertical bonnet, with flange alignment holes for centring, dead-end service and downstream dismantling; single-piece body, insulating cap with anti-condensation feature as standard, position indicator, locking device, travel stop, soft main and back seat; maintenance-free, full insulation possible.
-
Advantages
– Zero leakage and zero maintenance for life due to lubricated-for-life EPDM profile ring and single-piece body
– Minimum pressure loss by hydraulically favourable flow passage
– One model for shut-off and throttling due to EPDM-encapsulated throttling plug with linear characteristic
– Easy insulation due to simple body design and anti-condensation feature (insulating cap)
– Fully equipped at no extra price: internal travel stop, position indicator and locking device included.
– Suitable for universal use for PN 6/10/16: complete bolt hole pattern for PN 6/10/16 in a single body.
– Space-saving body design with face-to-face length to EN 558/94 (up to DN 150: face-to-face length = nominal size).
– Very low component weight for easy installation.
– Suitable for dead-end service due to alignment lugs with flange thickness to DIN EN 1092-2. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 6, PN 10, PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 120 °C
-
