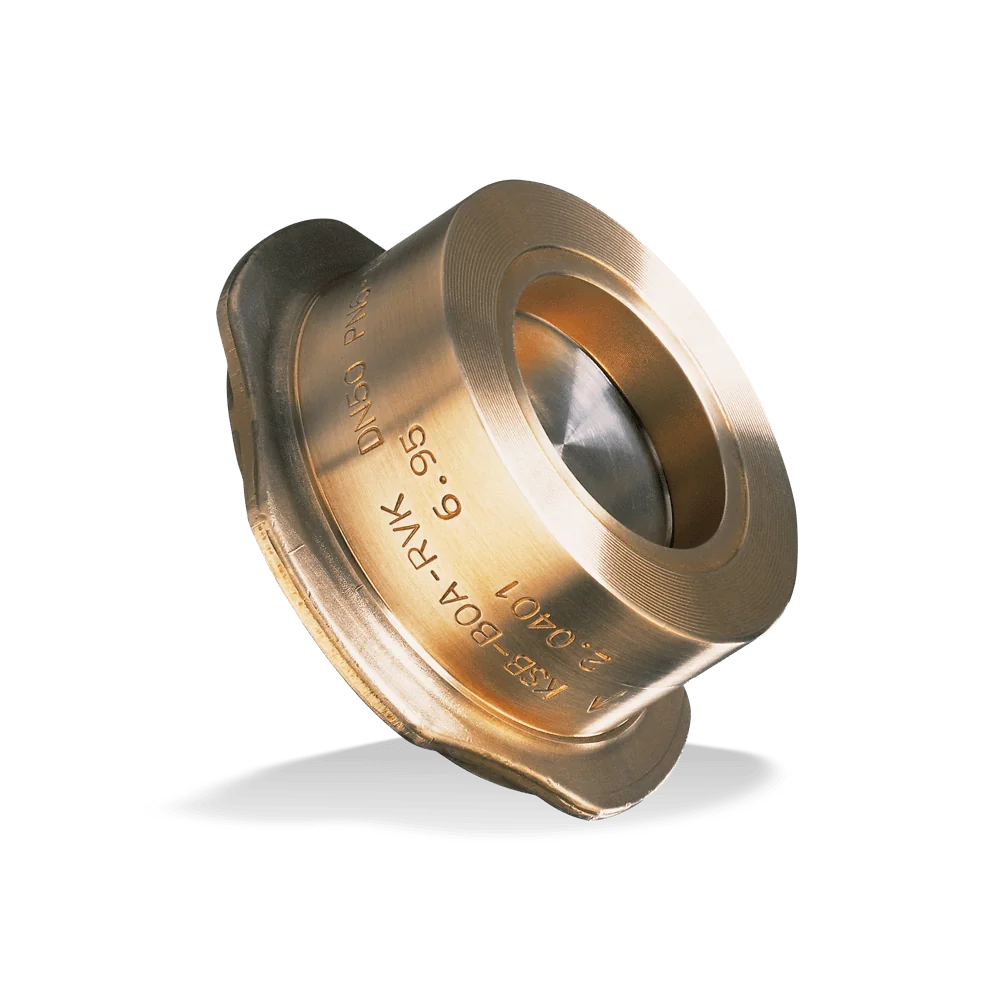

BOA-RVK
Lift check valve to DIN/EN with wafer-type body, centring aided by the body shape, shut-off by spring-loaded plate or valve disc guided by three stainless steel guiding pins. Low-noise designs with plastic plate (DN 15 - 100) or valve disc with O-ring (DN 125 - 200), maintenance-free.
-
Description
Main Applications
– Hot-water heating systems
– Air-conditioning systems
– Chemical industry
– Process engineering
– Heat recovery systems -
Advantages
– Highly reliable function as plate is accurately guided by three guide pins (up to DN 100).
– Integrally cast centring aid for easy installation.
– Low maintenance requirements due to corrosion-proof body made of brass (DN 15-100) and spring made of stainless steel (all nominal sizes).
– Universal use: Valve can be installed between flanges to DIN EN 1092-1 PN 6-16, DIN EN 1092-2 PN 6-16, ANSI B 16.1 25/125, BS 4504 PN 16 and in any installation position.
– Cost-effective transport and handling due to short face-to-face length and low weight
– Minimum pressure loss by hydraulically favourable flow passage -
Suitability
Lift check valve
-
Technical Features
- Nominal pressure
- PN 6, PN 10, PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 250 °C
-
