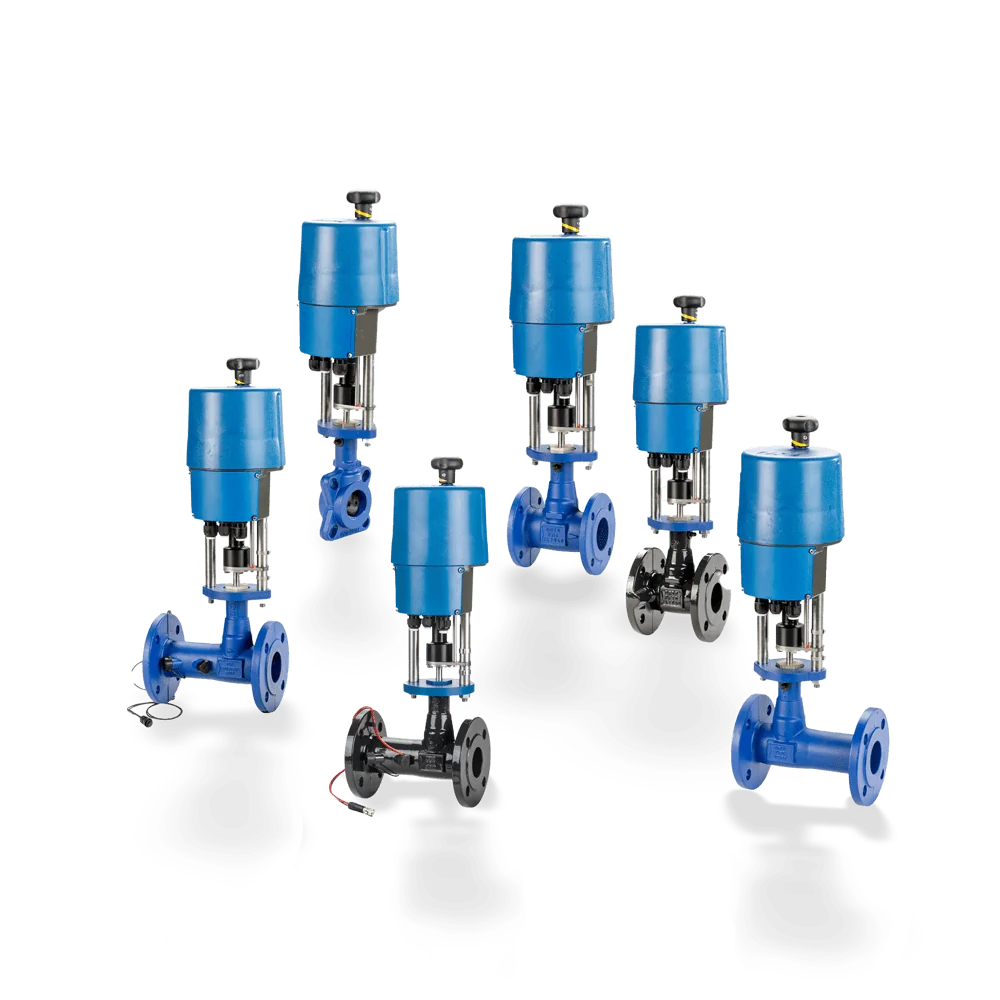

Ksb – BOA-CVE C/CS/W/IMS/EKB/IMS EKB
Control valve to DIN/EN based on standard type series BOA-Compact, BOA-SuperCompact, BOA-W, BOA-Compact EKB, BOA-Control IMS and BOA-Control IMS EKB, bonnetless pressure-retaining body, soft-seated. Leakage rate selectable from 0.05 % to drop-tight, Kvs values between 6.3 and 700 m³/h and closing pressures of up to 16 bar. With intelligent microprocessor-controlled and pre-set electric actuators providing actuating forces from 1000 N to 14,000 N; electronic configuration of flow characteristic, Kvs value, actuating signal and actuating time using PC tool or manual parameterisation unit. Customised configuration can be implemented at the KSB factory on request.
-
Description
Main Applications
– BOA-CVE C / BOA-CVE CS / BOA-CVE W:
– Hot-water heating systems
– Air-conditioning systems
– Heat recovery systems
– BOA-CVE IMS:
– Hot-water heating systems
– Air-conditioning systems
– Cooling circuits
– BOA-CVE EKB / BOA-CVE IMS EKB:
– Domestic water supply
– Water supply systems
– Air-conditioning systems
– Cooling circuits -
Advantages
– Individually programmable actuators programmed at the factory, for optimum adaptation to all applications
– Maintenance-free design with stem sealed by EPDM profile ring
– Soft-seated valve disc enables drop-tight shut-off.
– Weight of control valve reduced by at least 50 % to simplify installation and cut installation costs
– User-definable continuous control signal and actual-position feedback for optimum control options
– Programmable Kvs values
– Four Kvs values per nominal size
– Optionally available with integrated process controller (for EA-C actuators) for adaptation to numerous control tasks -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 6, PN 10, PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 120 °C
-
