Ksb – BOA-Control/ BOA‑Control IMS

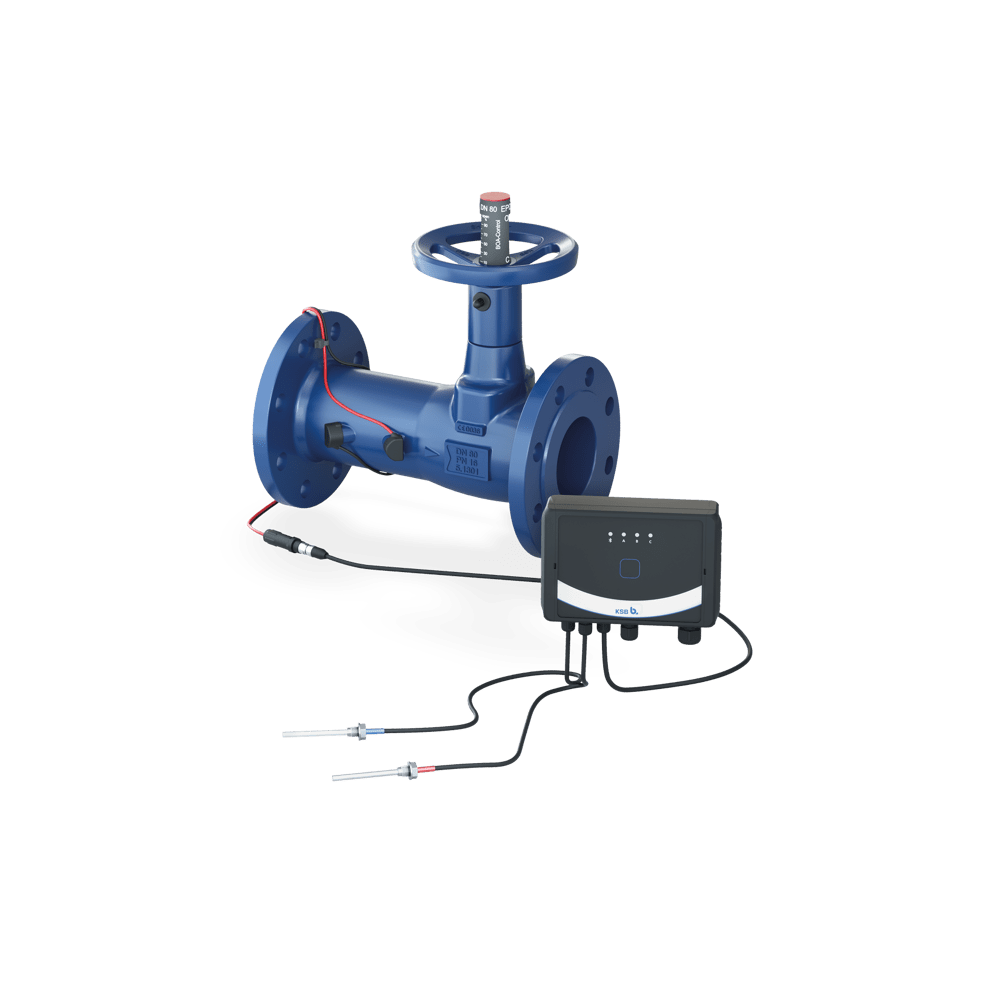

Balancing, measurement and shut-off valve with flanged ends to DIN/EN, constant measurement accuracy independent of differential pressures. Body in standard face-to-face length to EN 558/1, throttling plug, scaled position indicator, travel stop and insulating cap with anti-condensation feature; maintenance-free, full insulation possible. Also available with electrostatic plastic coating (EKB) and DVGW-certified for drinking water. With integrated ultrasonic sensors not coming into contact with the fluid handled. Stationary monitoring by means of BOATRONIC 100 MOD (24 V AC/DC, Modbus) of flow direction, volume flow rate and temperature, and optional recording of supply and return temperature as well as thermal output and quantity of heat. Mobile measurement of flow direction, volume flow rate and temperature using the BOATRONIC MS (battery powered) / BOATRONIC 100 (rechargeable battery powered) measuring computers.
-
Description
Main Applications
– Hot-water heating systems
– Air-conditioning systems
– Cooling circuits
– Local heating and district heating
– Drinking water supply
– Mobile short-term measurement of volume flow rate and temperature (e.g. for hydraulic balancing)
– Process monitoring of flow direction, flow velocity, volume flow rate, supply temperature and return temperature, thermal output and quantity of heat -
Advantages
– 1 valve with 4 functions: shut-off, control, measurement and monitoring by integrated ultrasound measurement system and EPDM-encapsulated throttling plug with linear characteristic curve
– BOA-Control is ideally suited for use in heating systems.
– BOA-Control IMS is suitable for universal use in heating and cooling systems and as a permanent measurement valve.
– Process monitoring of flow direction, volume flow rate, supply temperature, return temperature and quantity of heat directly at the valve as an alternative to additional measurement systems, such as magnetic-inductive flow sensors (MID)
– Standard face-to-face length to EN 558/1 for easy replacement of installed valves
– Universal use with large range of nominal sizes (DN 15 to DN 350)
– Suitable for water and water/glycol mixtures (glycol content ≤ 60 %)
– Measuring range up to a flow velocity of 4 m/s
– Easy to operate with direct measurement and external sensors (leakage-free)
– With BOA-Control, measuring work and time is saved due to the simple magnetic connection of the measurement sensors.
– Innovative ultrasound technology for electronic volume flow rate measurement independent of minimum differential pressures
– Minimised pressure loss and high flow rates due to hydraulically favourable flow passage.
– Plastic-coated EKB version for industrial cooling circuits and drinking water, DVGW-tested (DN 25 to DN 100)
– Simple body design and anti-condensation feature allow easy insulation, also for air-conditioning systems. Optional insulation shells available.
– Automatic identification of flow direction for optimised fault analysis
– Type series and nominal size can be identified reliably due to colour coding even on insulated valves; travel indicator scale provided
– Easy and intuitive commissioning per KSB FlowManager app or KSB ServiceTool -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 16
- Max. nominal size
- DN 350
- Maximum allowable fluid temperature
- 120 °C
-
