YNK

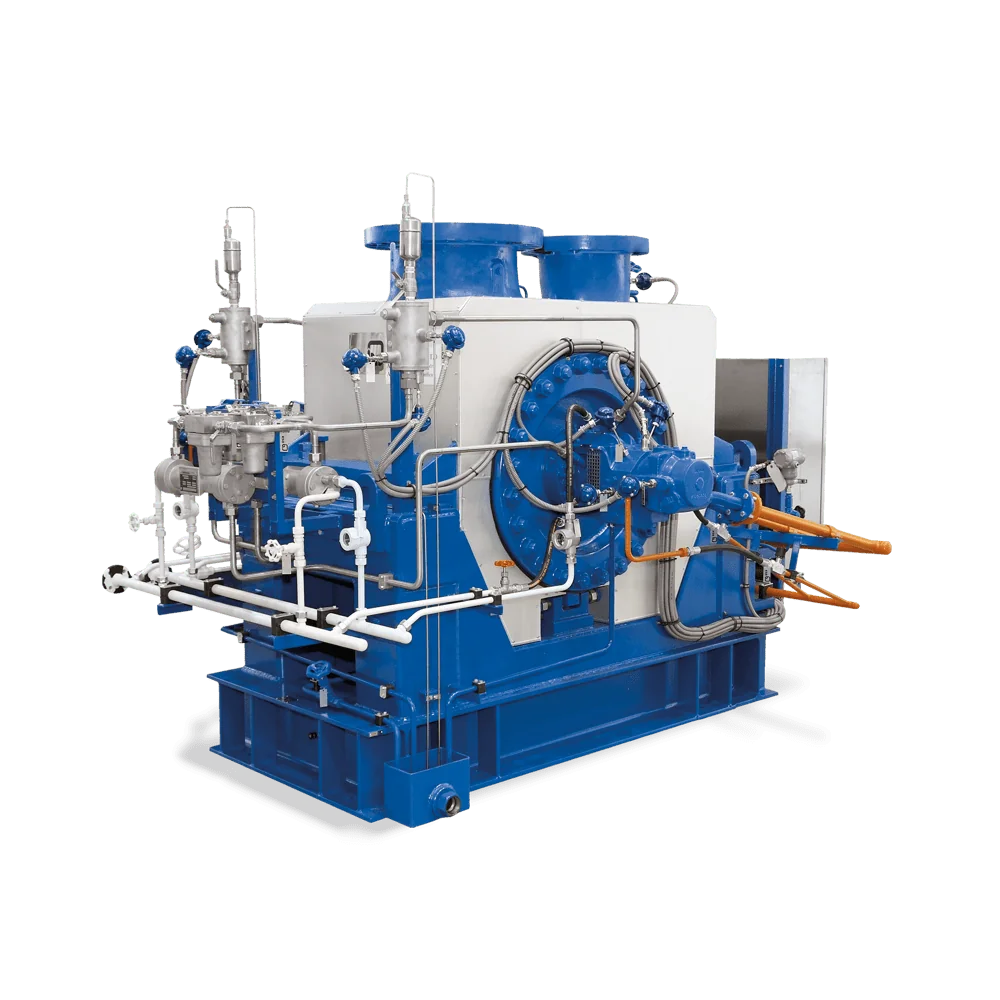

Horizontal radially split single-stage double-entry boiler feed booster pump (booster system) with cast steel single or double volute casing.
-
Advantages
– High availability and long service life
– Radial forces minimised by double volute casing
– Higher efficiency
– Axial thrust balancing by double-suction impeller
– Service-friendly: Rotor can be dismantled without removing the pump from the piping.
– Nozzle positions can be selected to suit customer requirements. -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 3700 m3/h
- Max. head
- 250 m
- Max. allowed working pressure
- 40 bar
- Maximum allowable fluid temperature
- 210 °C
-
