WKTB

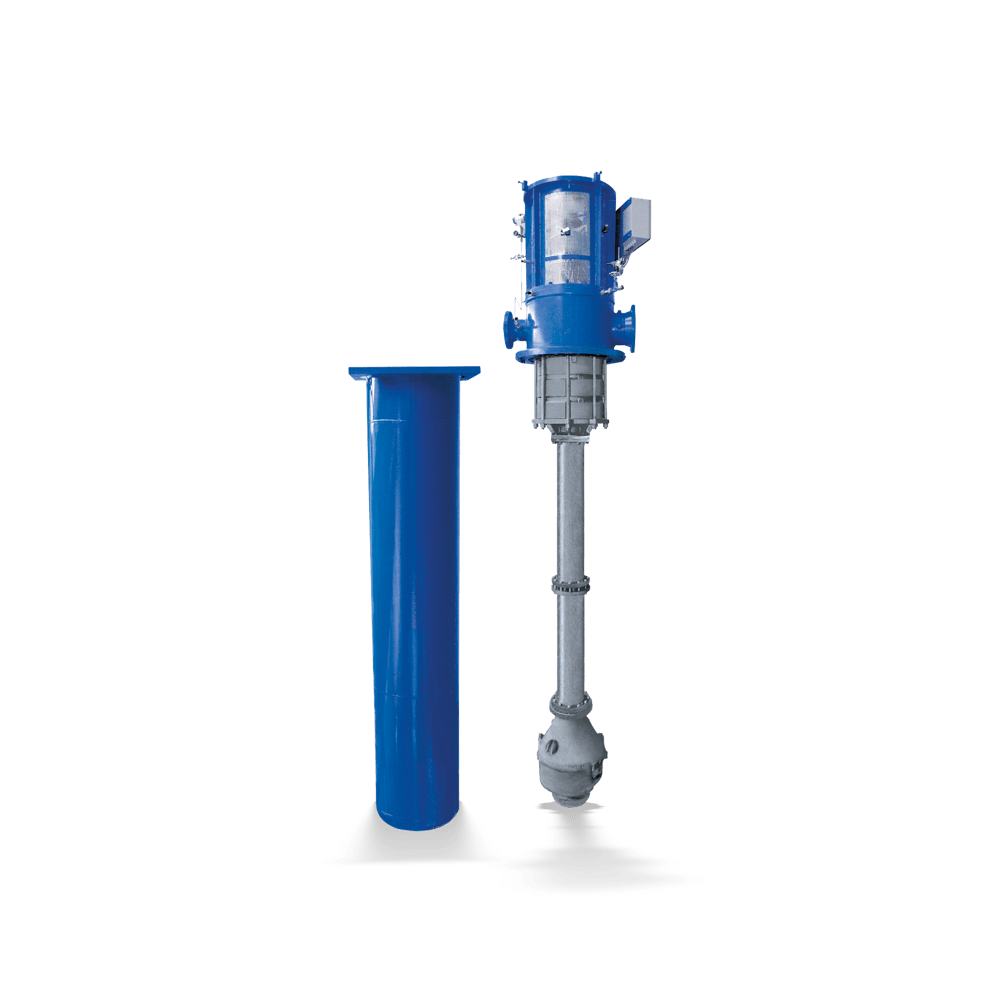

Vertical can-type ring-section pump on base frame, multistage, first-stage impeller designed as a double-entry suction impeller, radial impellers. Flanges to DIN or ANSI.
-
Advantages
– Optimum matching to customer requirements with a range of material variants
– Excellent rotordynamic properties by subsequent stages fitted directly at the distributor casing, separate from the suction stage.
– High operating reliability by casing wear rings with anti-seizure properties
– Smooth running with low-wear, product-lubricated plain bearings
– Low installation and maintenance costs as the cartridge seal can be replaced without removing the motor. -
Suitability
Vertical shaft submersible pump
-
Technical Features
- Max. flow rate
- 1500 m3/h
- Max. head
- 370 m
- Max. allowed working pressure
- 40 bar
- Maximum allowable fluid temperature
- 100 °C
-
