Ksb – Vitalobe

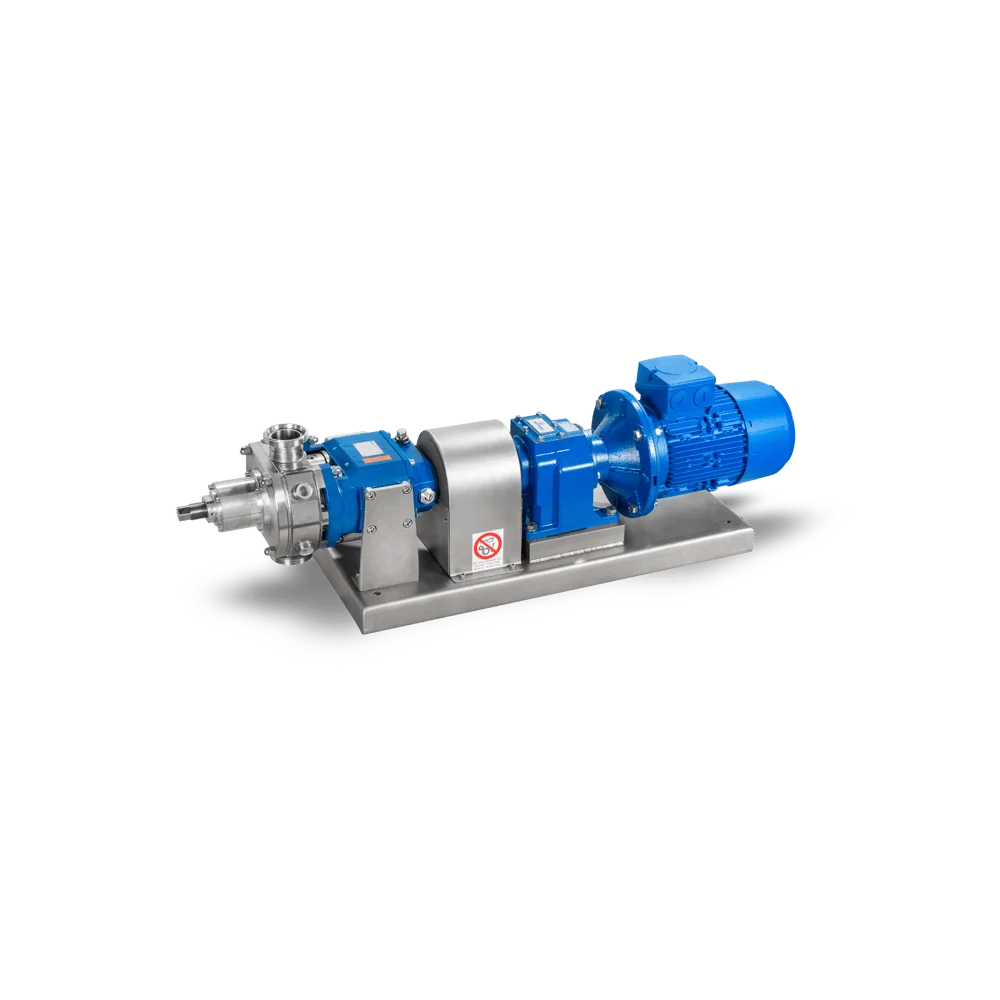

Sturdy rotary lobe pump in hygienic design, bi-directional operation possible, horizontal or vertical orientation of connections. Hygienic design, excellent CIP/SIP compatibility due to its almost complete lack of dead volume or narrow clearances. All wetted components made of 1.4404/1.4409 (AISI 316L/CF3M) stainless steel; various rotor types, shaft seals and process connections available. Installed as a pump set with gear unit and standardised motor. Vitalobe is EHEDG-certified. The pump elastomers comply with the FDA standards and EN 1935/2004. Accessories include a trolley, a heatable casing or casing cover and a pressure relief arrangement. ATEX-compliant version available.
-
Description
Main Applications
– Food industry / beverage industry
– Pharmaceutical industry
– Cosmetics industry
– General industry
– Chemical industry -
Advantages
– Hygienic zero dead volume design for residue-free and fast CIP/SIP
– Flexible with horizontal in-line or vertical in-line connections
– Flexible with different types and materials of rotary lobes, matched to the specific application
– Reliable with solid design of pressure-retaining and rotating parts and shafts supported on two double tapered roller bearings
– Reliable with integrated pressure relief valve -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 300 m3/h
- Max. head
- 150 m
- Max. allowed working pressure
- 20 bar
- Maximum allowable fluid temperature
- 160 °C
-
