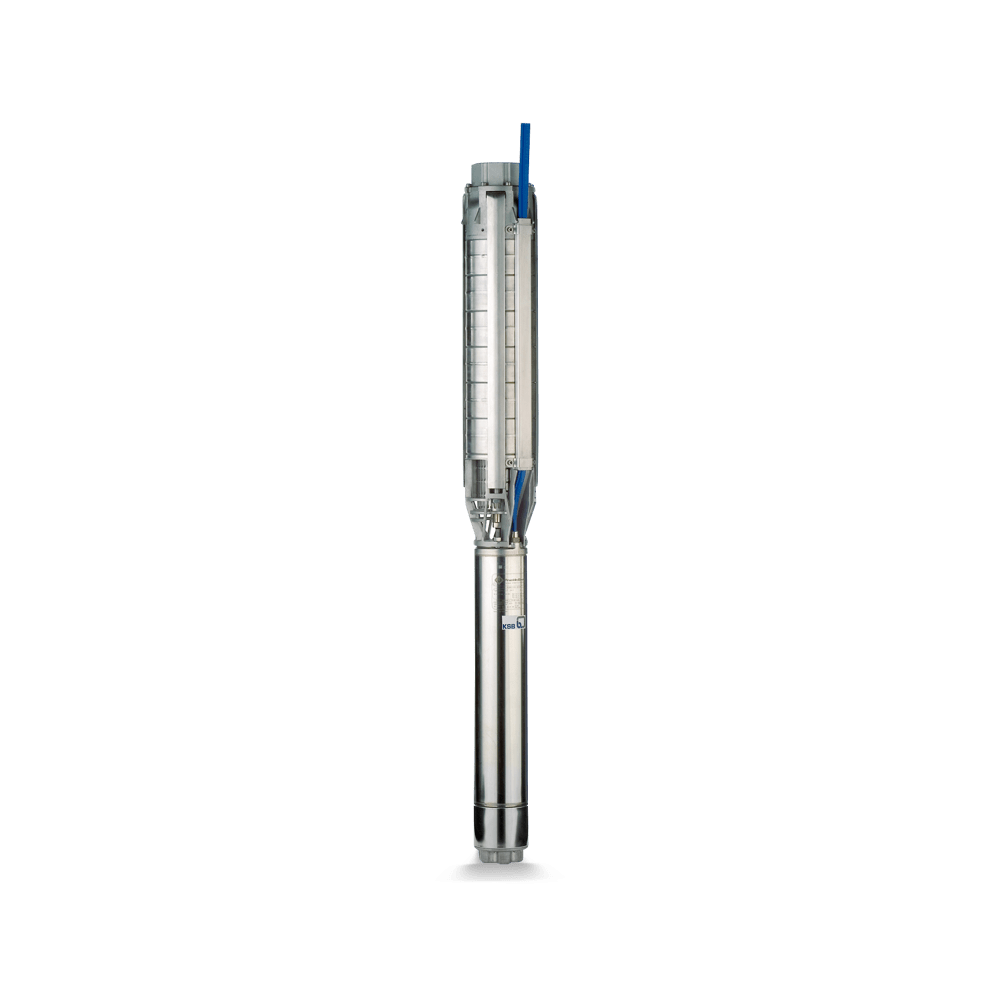

UPA C 150
All-stainless steel single-stage or multistage centrifugal pump in ring-section design, suitable for vertical or horizontal installation, for well diameters of 150 mm (6 inches) and above.
-
Description
Main Applications
– Spray irrigation systems
– General irrigation systems
– Pressure boosting
– Lowering groundwater levels
– Domestic water supply
– Air-conditioning systems
– Water supply systems -
Advantages
– High operating reliability and long service life due to reinforced suction strainer, robust drive lantern and lift check valve made of investment cast stainless steel, laser-welded impellers and protection against thrust reversal
– High operating reliability as all components are made of high-quality stainless steel.
– High efficiencies through optimised hydraulic design
– High efficiencies in combination with UMA S 150E synchronous motor
– High flexibility by vertical, horizontal and angular installation options
– Reliable operation by anti-jam lift check valve
– Highly flexible operating range through adjustment of motor dimensions
– Easy to install with service-friendly hydraulic system design -
Suitability
Submersible borehole pump
-
Technical Features
- Max. flow rate
- 95 m3/h
- Max. head
- 627 m
- Max. allowed working pressure
- 60 bar
- Maximum allowable fluid temperature
- 50 °C
-
