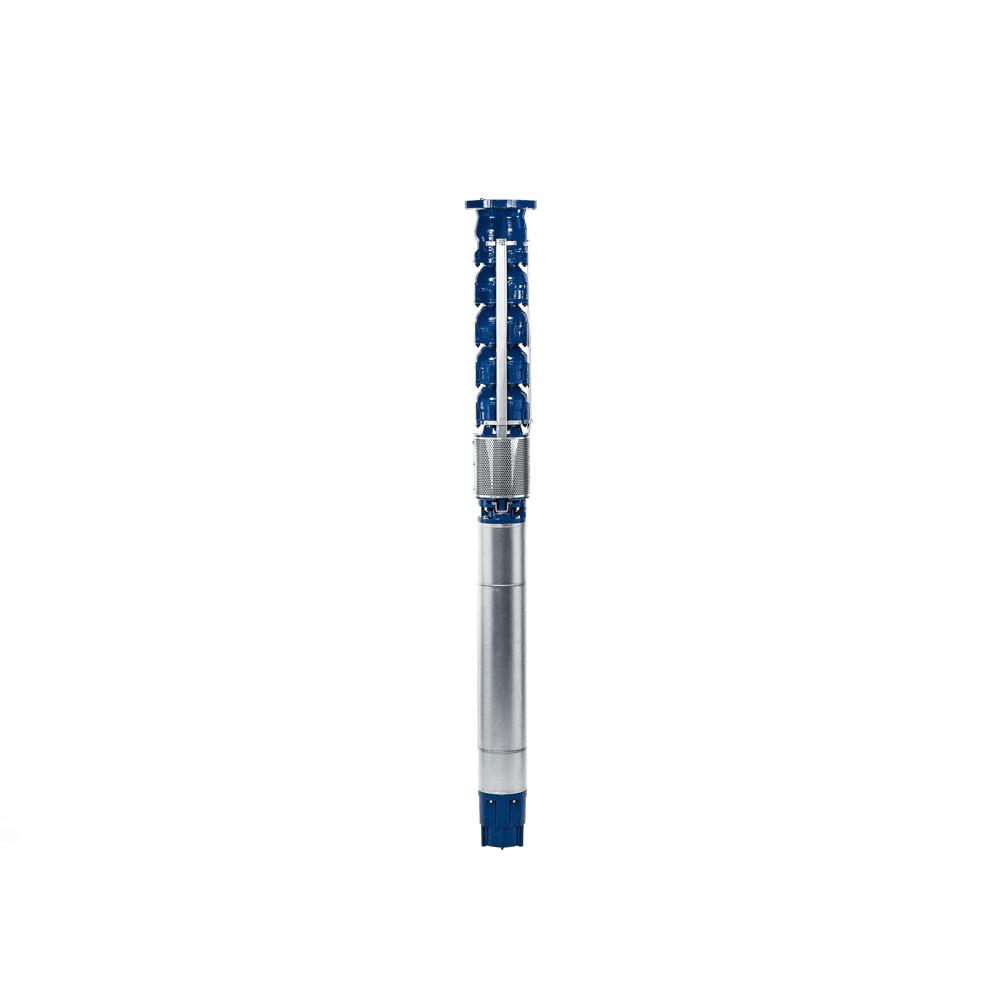

UPA 350 / UPA S 350
Single-stage or multistage single-entry centrifugal pump in ring-section design for vertical or horizontal installation. Mixed flow hydraulic systems with impellers that can be turned down. Optionally available with lift check valve or connection branch. For well diameters of 14 inches and above.
-
Description
Main Applications
– Water supply systems
– Spray irrigation systems
– Mining
– General irrigation systems
– Pressure boosting
– Fire-fighting systems
– Lowering groundwater levels -
Advantages
– High efficiencies through optimised hydraulic design
– High operating reliability and a long service life by integrated sand separator, robust wear rings and enclosed pump bearings
– Reliable operation by anti-jam lift check valve
– High flexibility by vertical, horizontal and angular installation options
– Durable, completely maintenance-free design with hydrodynamic bearings
– Easy to install with service-friendly hydraulic system design
– Low noise level -
Suitability
Submersible borehole pump
-
Technical Features
- Max. flow rate
- 800 m3/h
- Max. head
- 240 m
- Max. allowed working pressure
- 60 bar
- Maximum allowable fluid temperature
- 50 °C
-
