TBC

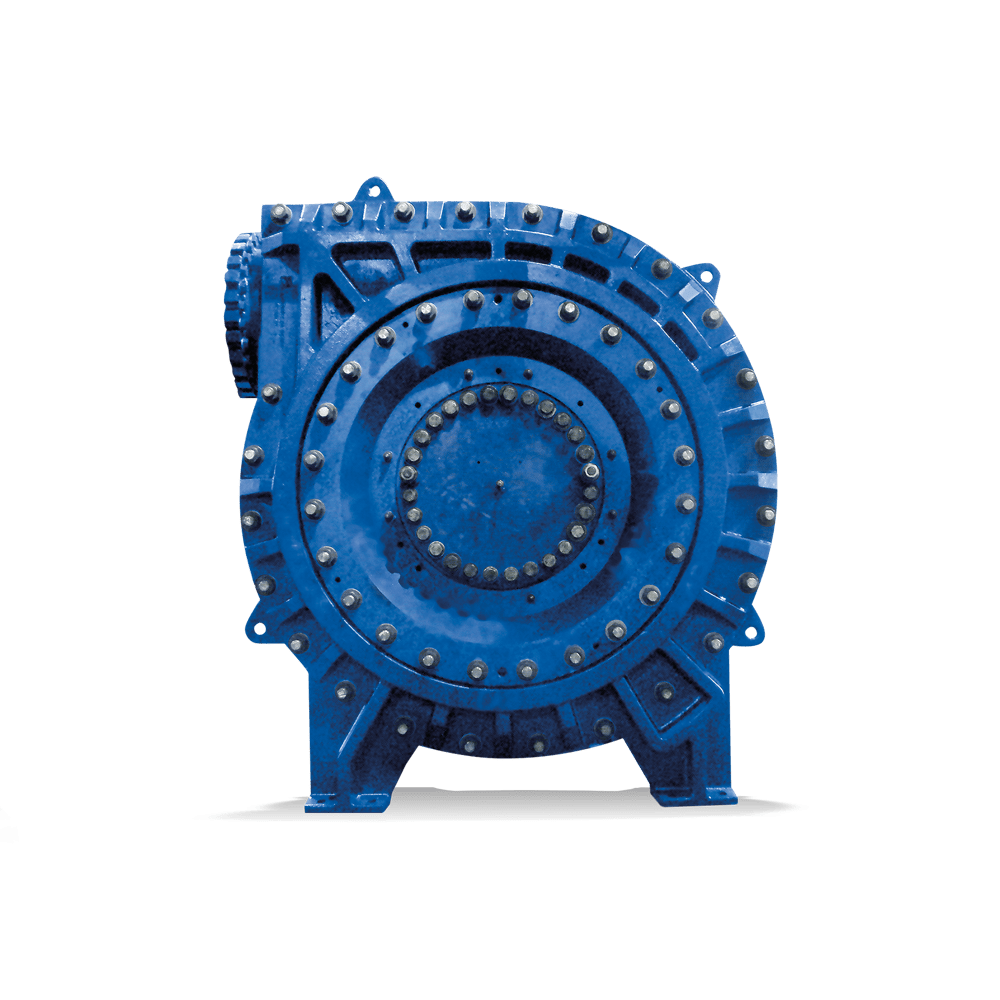

Horizontal high-pressure end-suction centrifugal pump offering maximum resistance to wear and ease of maintenance. The conventional single-wall design transfers stress loads from the wear parts to the casing covers in high-pressure applications. Pump components made of highly wear-resistant white cast iron.
-
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 18200 m3/h
- Max. head
- 90 m
- Max. allowed working pressure
- 37 bar
- Maximum allowable fluid temperature
- 120 °C
-
