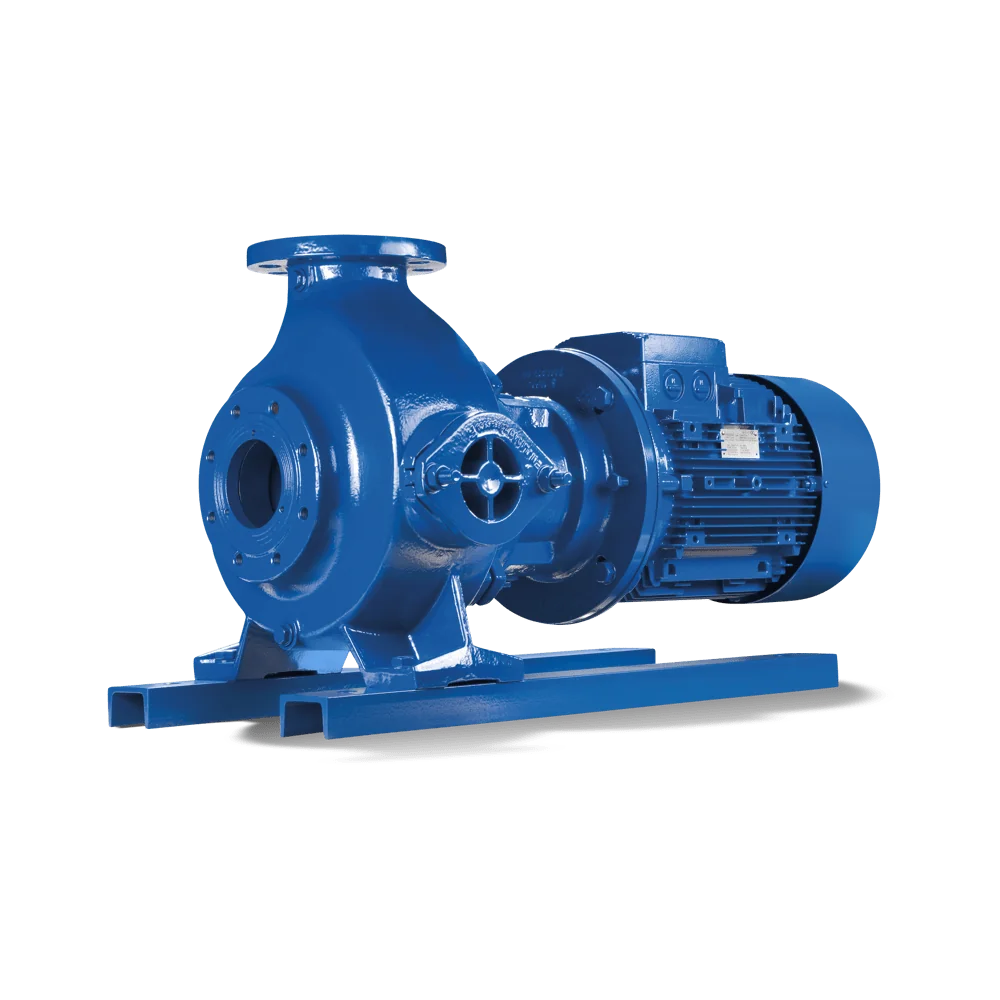

Sewabloc
Close-coupled volute casing pump for horizontal or vertical installation, with various next-generation impeller types, discharge flange to DIN and ANSI standards. Explosion-proof version available.
-
Description
Main Applications
– Waste water transport
– Waste water disposal
– Waste water management
– Transport of contaminated surface water
– Sludge processing -
Advantages
– Variable hydraulic system: the right impeller with optimum efficiency for every fluid. High operating reliability due to large free passages.
– Double mechanical seal in tandem arrangement with fluid reservoir makes for high operating reliability.
– Low maintenance thanks to grease-packed rolling element bearings
– Standardised components are interchangeable within the Sewatec/Sewabloc and Amarex KRT series, so spare parts inventories can be optimised and costs reduced. -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 830 m3/h
- Max. head
- 80 m
- Max. allowed working pressure
- 10 bar
- Maximum allowable fluid temperature
- 70 °C
-
