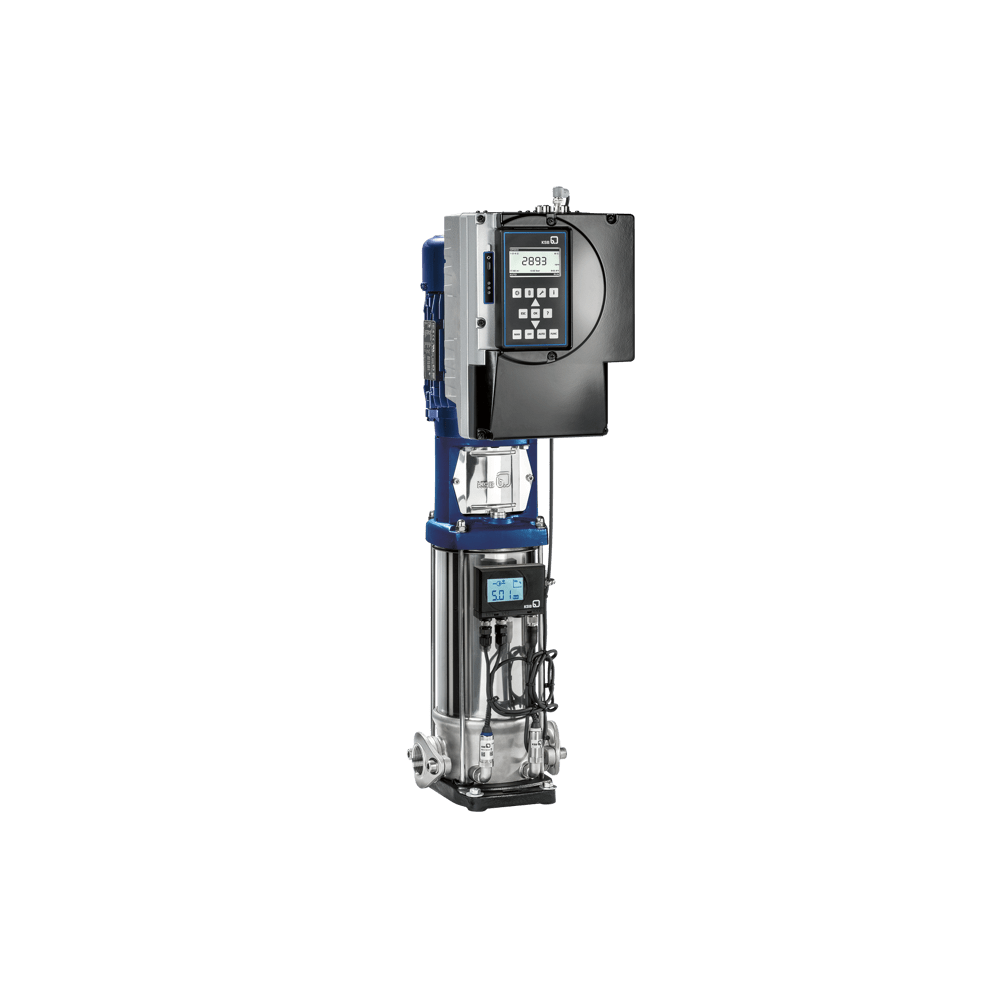

Movitec
Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
-
Description
Main Applications
– Spray irrigation systems
– General irrigation systems
– Washing plants
– Fire-fighting systems
– Pressure boosting
– Industrial plants
– Water supply systems
– Heating, ventilation and air-conditioning systems
– Marine applications -
Advantages
– Reliable: product-lubricated plain bearings made of tungsten carbide, cast pump foot, torsion-resistant pump shroud and confined O-rings
– Long service life: corrosion-resistant hydraulic components made of stainless steel
– Easy to service: can be fitted with any standardised mechanical seal (to EN 12756)
– Flexible: various materials and connection options, extended temperature range and pressure range -
Suitability
Ring-section pump
-
Technical Features
- Max. flow rate
- 192 m3/h
- Max. head
- 415 m
- Max. allowed working pressure
- 40 bar
- Maximum allowable fluid temperature
- 140 °C
-
