Ksb – MK

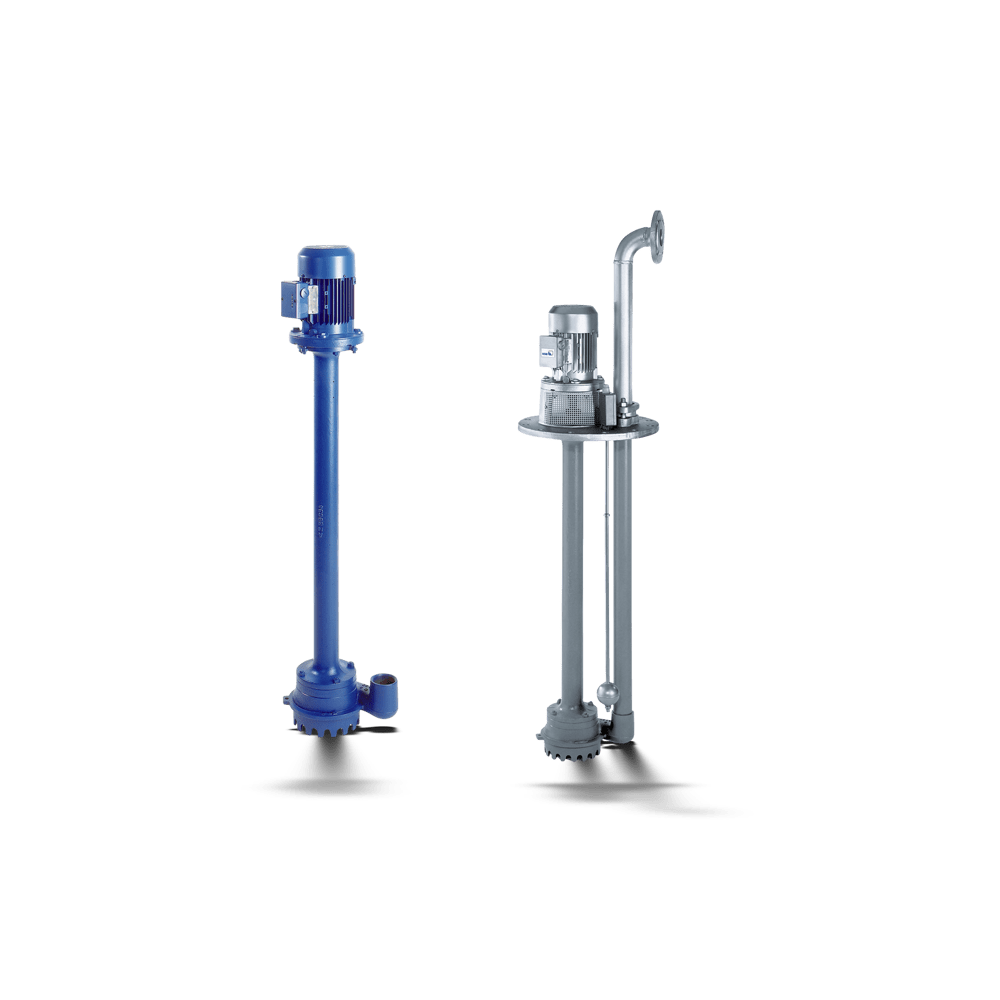

Vertical submersible pump with three-channel impeller, volute casing designed as inlet strainer.
-
Description
Main Applications
– MK, MKA:
– Automatic drainage of rooms at risk of flooding
– Drainage of collecting basins or pits
– Condensate return from non-pressurised tanks
– MKY:
– Condensate return systems
– Heating systems
– Heat transfer systems -
Advantages
– Fitted with a three-channel impeller for fluids containing solids of up to 18 mm
– Rod-actuated float switch for high temperatures and viscous fluids
– Flexible with support column for variable installation depths
– Integrated suction strainer prevents clogging.
– Durable with robust deep groove ball bearings -
Suitability
Vertical shaft submersible pump
-
Technical Features
- Max. flow rate
- 36 m3/h
- Max. head
- 19 m
- Max. allowed working pressure
- 6 bar, 16 bar
- Maximum allowable fluid temperature
- 200 °C
