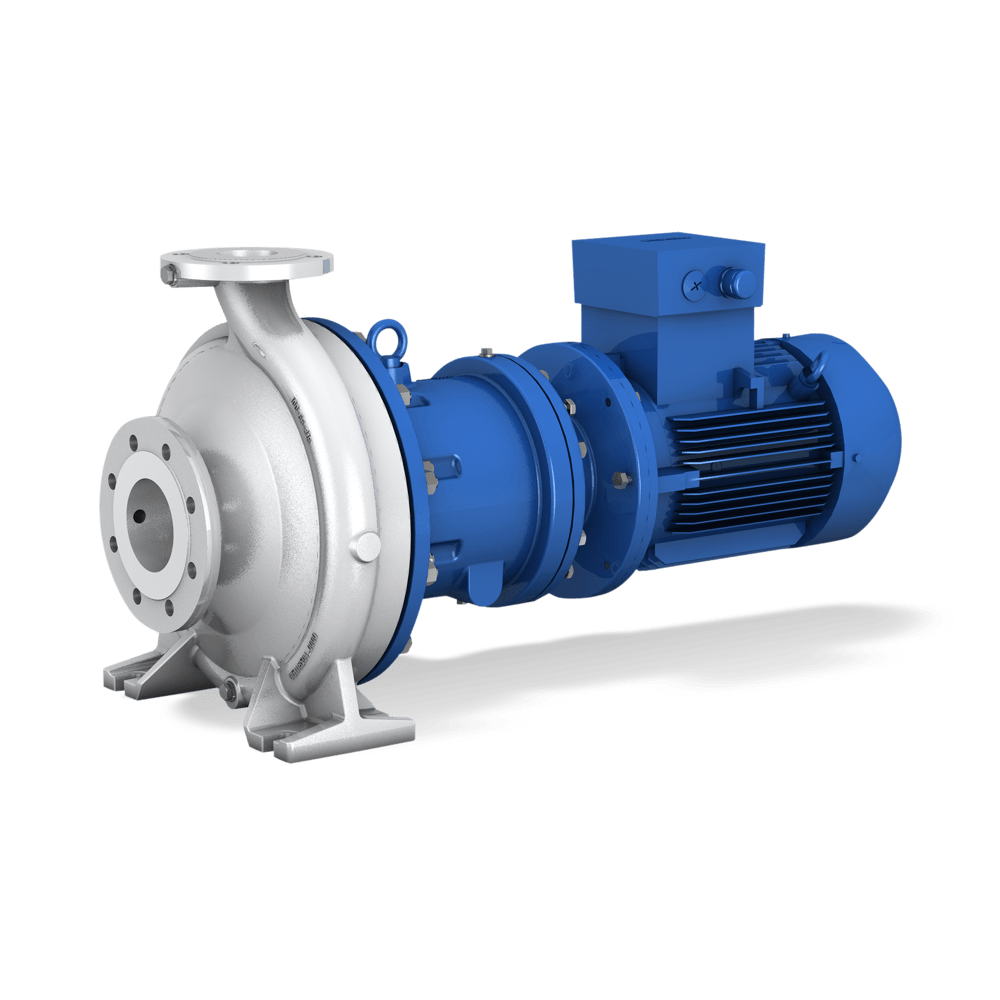

Magnochem-Bloc
Horizontal or vertical seal-less volute casing pump in close-coupled design, with magnetic drive, to DIN EN ISO 2858 / ISO 5199, with radial impeller, single-entry, single-stage. ATEX-compliant version available.
-
Description
Main Applications
– Chemical industry
– District heating
– Industrial recirculation systems
– Air-conditioning systems
– Condensate transport
– Cooling circuits
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Process engineering
– Hot-water heating systems
– Sugar industry
– Heat transfer fluids / thermal oil systems
– Industry -
Advantages
– High operating reliability:
- – Only static seals are required.
– Optional leakage barrier
– Containment shroud protected by anti-rub feature on outer rotor and inner rotor
– Self-draining facility of containment shroud
– Pump does not need to be drained before drive unit is fitted/removed.– Broad application range:
- – Product-lubricated plain bearings made of silicon carbide (DLC coating optionally available)
– Modular design principle for hydraulic system and magnetic coupling
– Large number of operating modes
– Temperature maintenance and heating facility for casing and casing cover -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 754 m3/h
- Max. head
- 236 m
- Max. allowed working pressure
- 40 bar
- Maximum allowable fluid temperature
- 200 °C
-
