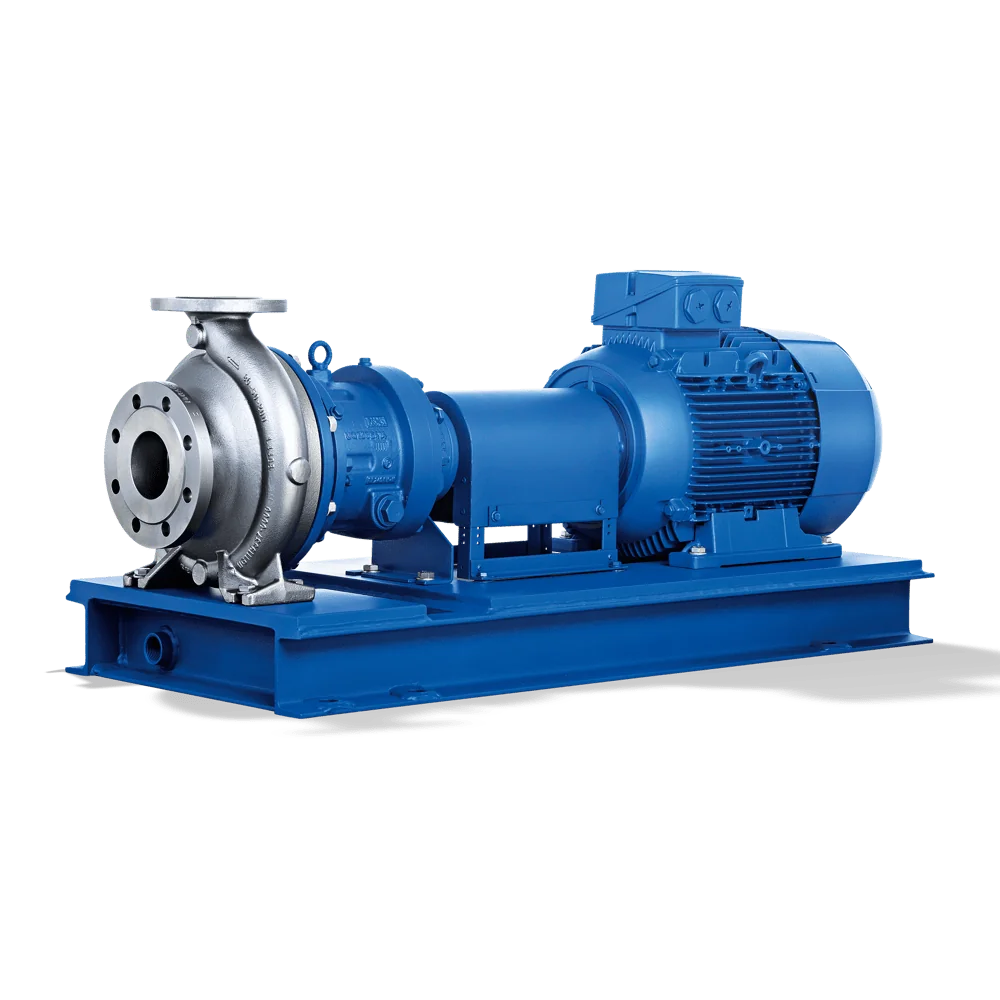

Magnochem

– High operating reliability:

– Only static sealing elements are required.
– Optional leakage barrier
– Containment shroud protected by anti-rub feature on outer rotor and inner rotor
– Self-draining facility of containment shroud
– Pump does not need to be drained before drive unit is fitted/removed.

– Broad application range:

– Product-lubricated plain bearings made of silicon carbide (DLC coating optionally available)
– Modular design principle for hydraulic system and magnetic coupling
– Large number of operating modes
– Temperature maintenance and heating facility for casing and casing cover

– Low-maintenance design:

– Product-lubricated plain bearings made of silicon carbide (wear-free)
– Grease-packed rolling element bearings sealed for life (30,000 hours at operating temperatures under 80 °C) or oil-lubricated rolling element bearings (35,000 hours)

– Ideally suited for high fluid temperatures:

– Lower surface temperatures thanks to heat barrier.
– Temperature of rolling element bearings is reduced by cooling fins.
– Temperature range extended up to 400 °C by optional fan impeller

– Can be used with special measures in atmospheres of ATEX temperature classes whose defined temperature is lower than that of the fluid.
– High safety with optional secondary and tertiary sealing elements arranged in series
– Controlled leakage drain by means of optional connection between barriers

Dry-installed pump
