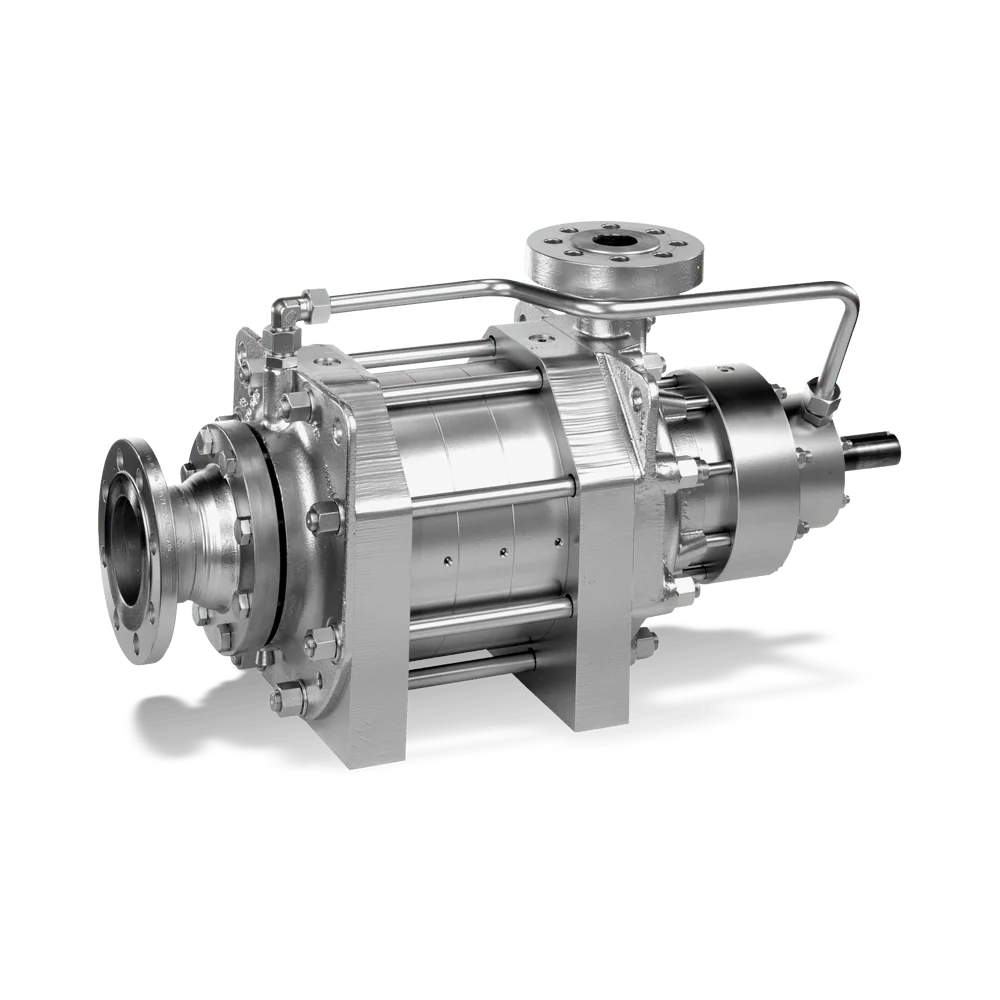

HGM/HGM-S
Horizontal radially split product-lubricated multistage ring-section pump with radial impellers, axial and radial single-entry inlet.
-
Advantages
– Low NPSH values by axial inlet; combination with suction impeller as standard
– Excellent smooth running with product-lubricated bearings
– No auxiliary systems required for cooling or lubrication
– Easy to install with service-friendly hydraulic system design
– Optimum matching to customer requirements with a variety of hydraulic systems
– Only one mechanical seal as standard; for fluid temperatures up to 140 °C uncooled, for fluid temperatures up to 160 °C with integrated air cooler -
Suitability
Ring-section pump
-
Technical Features
- Max. flow rate
- 390 m3/h
- Max. head
- 1400 m
- Max. allowed working pressure
- 140 bar
- Maximum allowable fluid temperature
- 160 °C
-
