Etaseco/ Etaseco-I

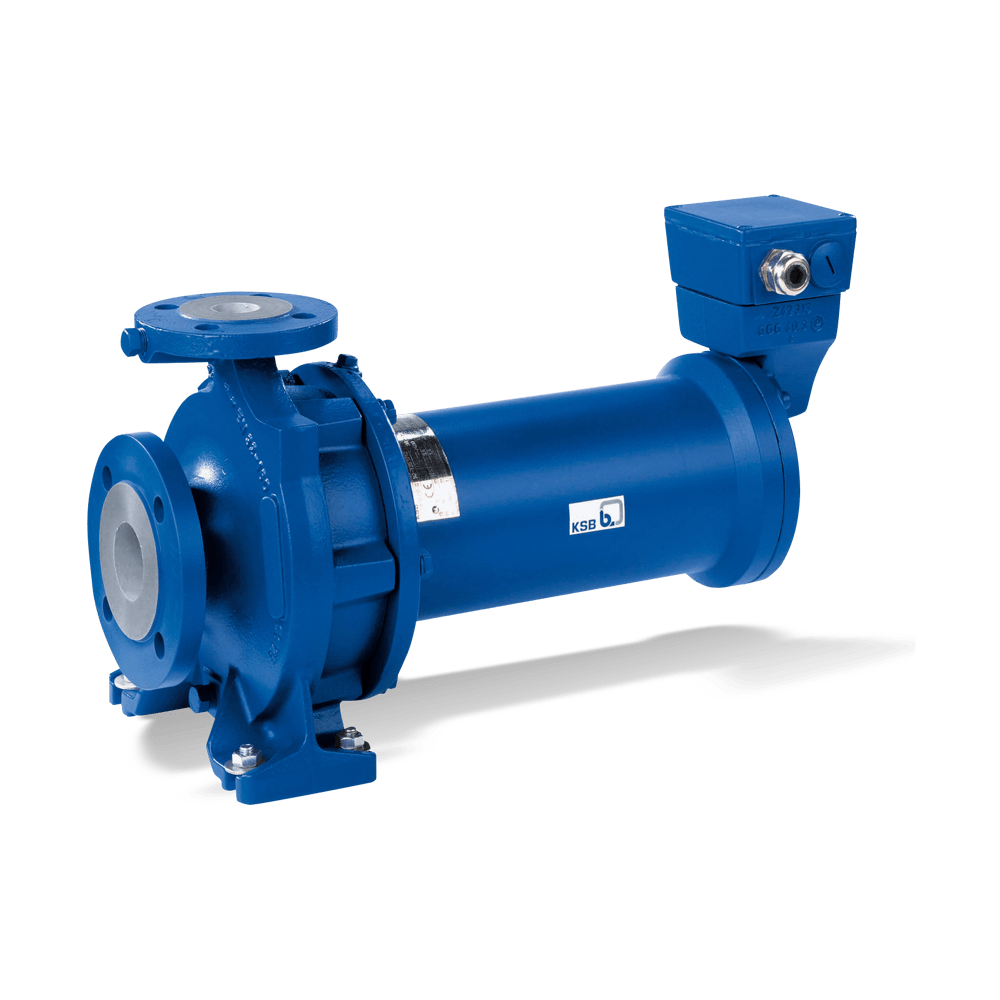

Horizontal or vertical seal-less volute casing pump in back pull-out design with fully enclosed canned motor, low noise emission, with radial impeller, single-stage, single-entry, casing connecting dimensions to EN 733, or in in-line design.
-
Advantages
– Reliability provided by well-proven hydraulic system with excellent efficiencies and NPSH values
– High functional reliability through self-venting of the pump set via hollow shaft with radial bores
– High operating reliability by thermal motor protection (optional) and use of corrosion-resistant materials for the stator can and rotor can
– Space-saving and easy to install due to close-coupled design
– Long service life due to high-quality plain bearings with long inspection intervals
– Leak-free, maintenance-free and low-noise operation with modern canned motor technology
– Convenient draining and cleaning via flushing connection if required -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 250 m3/h
- Max. head
- 100 m
- Max. allowed working pressure
- 16 bar
- Maximum allowable fluid temperature
- 140 °C
-
