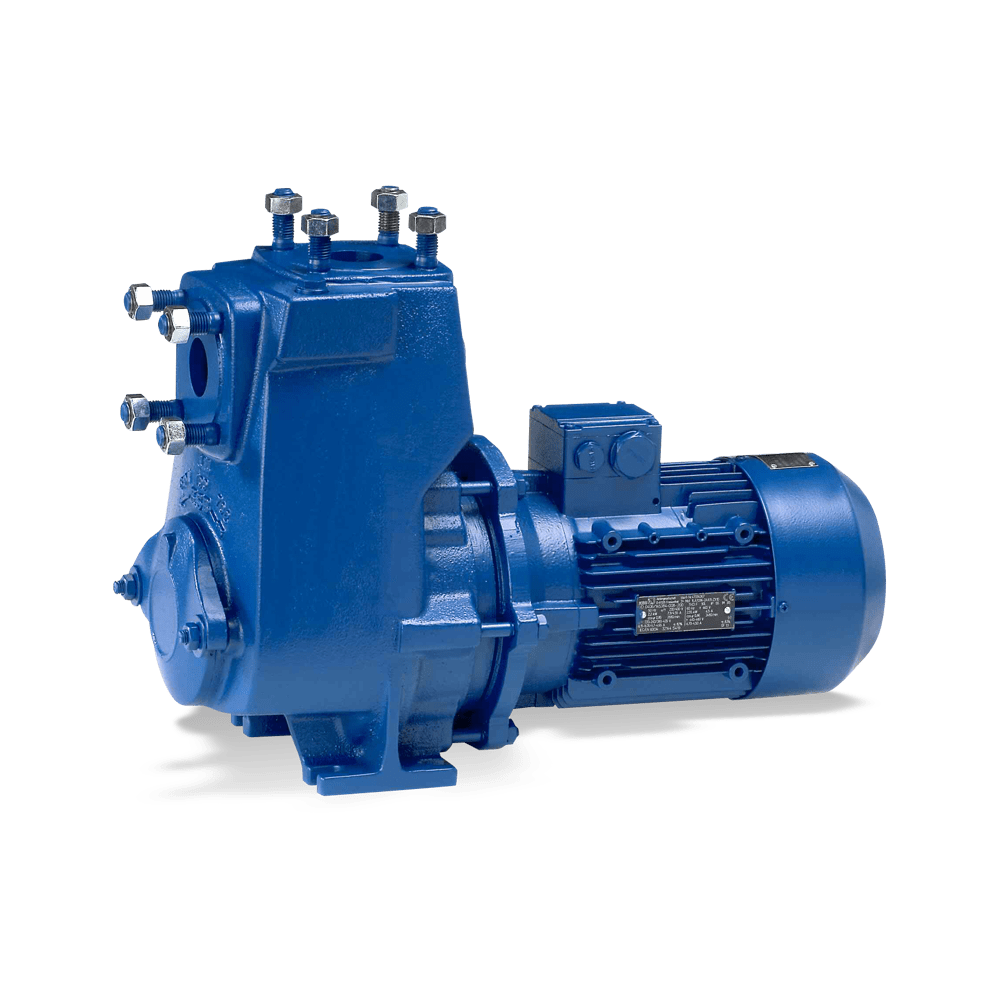

Etaprime B
Horizontal self-priming volute casing pump, single-stage, with open multi-vane impeller, close-coupled; pump shaft and motor shaft rigidly connected; ATEX-compliant version available.
-
Description
Main Applications
– Spray irrigation systems
– Service water supply systems
– Drainage
– Drainage systems
– Fire-fighting systems
– Lowering groundwater levels
– Domestic water supply
– Air-conditioning systems
– Cooling circuits
– Swimming pools
– Water supply systems -
Advantages
– Maintenance-free mechanical seal ensures operating reliability
– Easy to dismantle due to back pull-out design; no need to remove the pump casing from the piping
– Good suction performance, self-priming up to 9 m suction lift, also suitable for applications with relatively poor inlet conditions (i.e. low or negative inlet pressure) and for handling fluids with entrained gas.
– Optimised hydraulic components for high efficiency help reduce energy consumption -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 150 m3/h
- Max. head
- 100 m
- Max. allowed working pressure
- 10 bar
- Maximum allowable fluid temperature
- 90 °C
-
