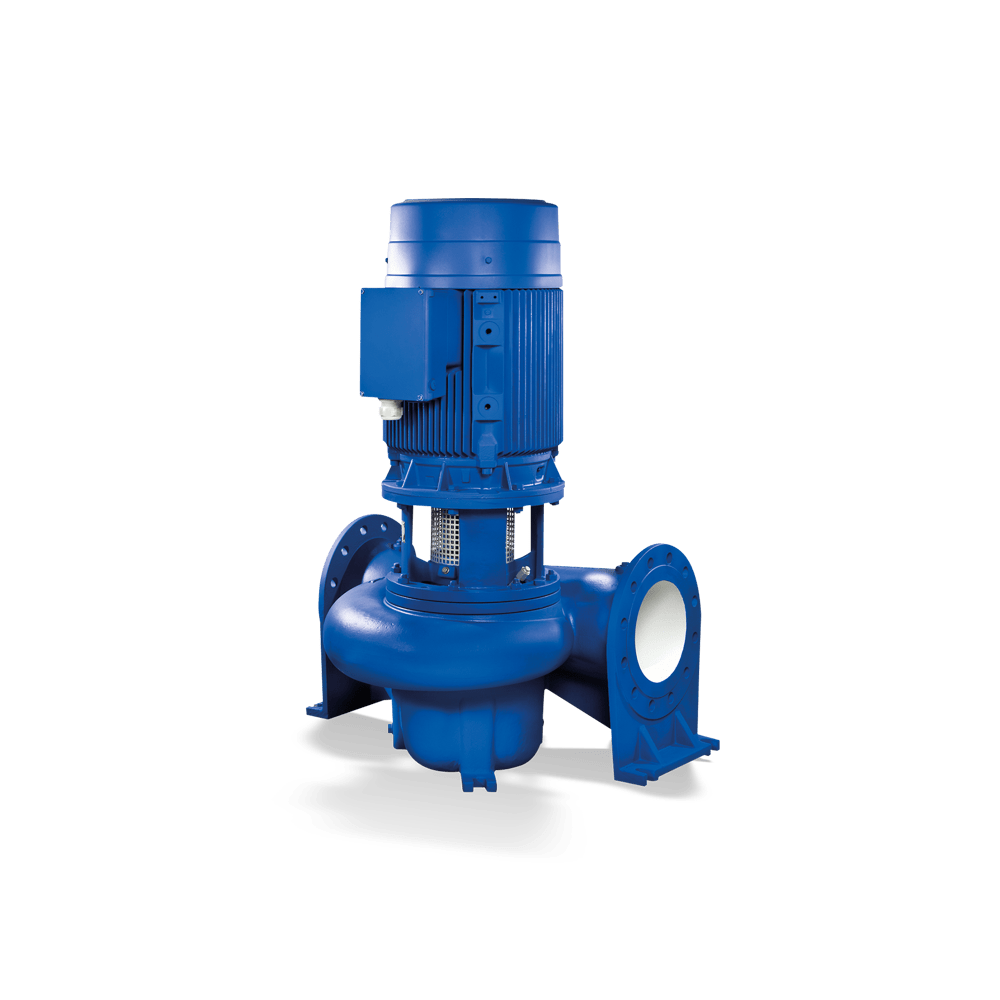

Etaline-R
Vertical close-coupled pump with volute casing in in-line design with magnet-less KSB SuPremE motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable speed system.
-
Description
Main Applications
– Service water supply systems
– Heating systems
– Industrial recirculation systems
– Air-conditioning systems
– Cooling circuits
– Water supply systemsNo drinking water in acc. with UBA (German drinking water regulations to German Environment Agency) -
Advantages
– Improved efficiency and NPSHreq by experimentally verified hydraulic design of impellers (vanes)
– Operating costs reduced by trimming the nominal impeller diameter to match the specified duty point
– Little wear, low vibration levels and excellent smooth running characteristics thanks to good suction performance and virtually cavitation-free operation across a wide operating range
– Casing sealed reliably – even in varying operating conditions – by confined casing gasket
– Large variety of materials as standard for perfectly matching the pump to the fluid handled -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 2280 m3/h
- Max. head
- 97 m
- Max. allowed working pressure
- 25 bar
- Maximum allowable fluid temperature
- 140 °C
-
