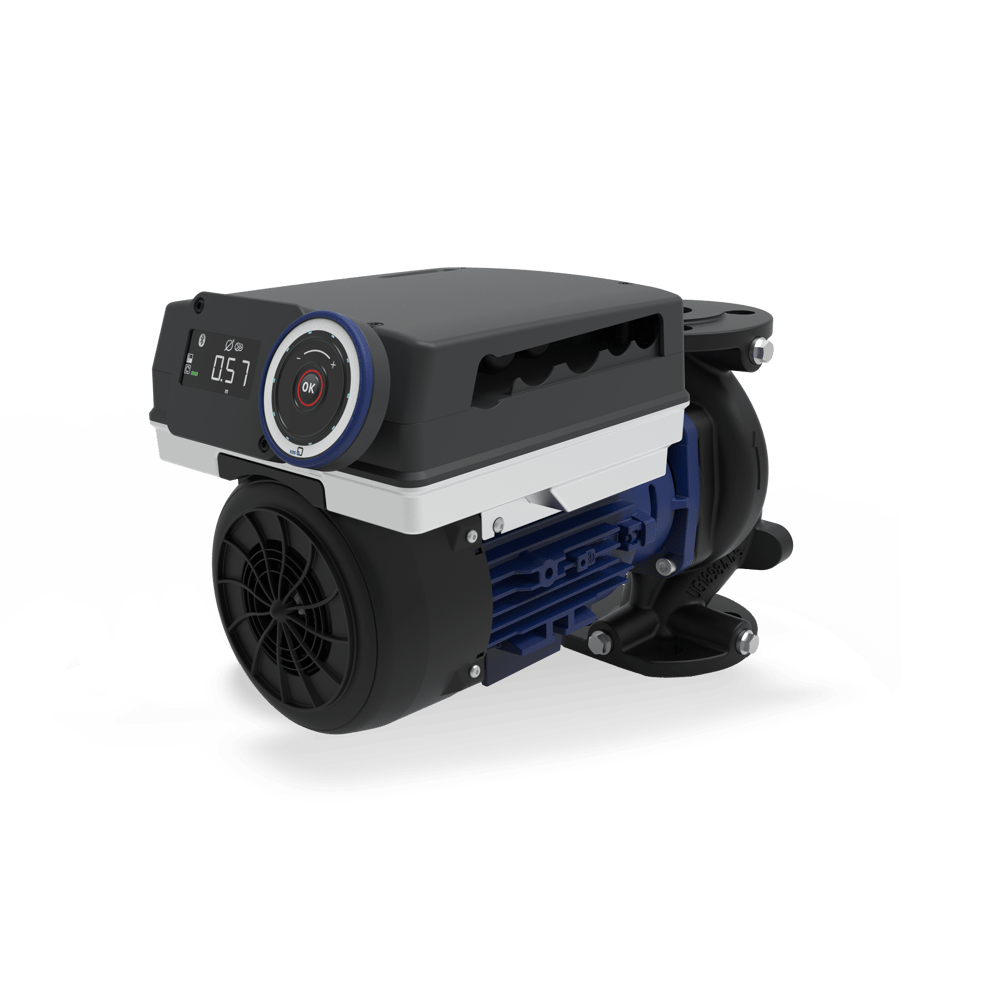

EtaLine Pro
EtaLine Pro – more compact, flexible and efficient. Service-friendly high-efficiency variable speed in-line pump with dry-rotor permanent magnet synchronous motor. Integrated sophisticated pump functions. Well ahead of the ErP Directive's efficiency requirements. For heating and air-conditioning applications as well as water supply systems.
-
Description
Main Applications
– Service water supply systems
– Heating systems
– Industrial recirculation systems
– Air-conditioning systems
– Cooling circuits
– Water supply systemsNo drinking water in acc. with UBA (German drinking water regulations to German Environment Agency) -
Advantages
– Improved efficiency and NPSHreq by experimentally verified hydraulic design of impellers (vanes)
– Little wear, low vibration levels and excellent smooth running characteristics thanks to good suction performance and virtually cavitation-free operation across a wide operating range
– Casing sealed reliably – even in varying operating conditions – by confined casing gasket
– Low-noise, low-vibration motors specially designed for EtaLine Pro
– Straightforward commissioning thanks to default factory parameter settings
– Space-saving thanks to integrated electronics and high output per size of the compact pump -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 64 m3/h
- Max. head
- 42.9 m
- Max. allowed working pressure
- 10 bar
- Maximum allowable fluid temperature
- 120 °C
-
