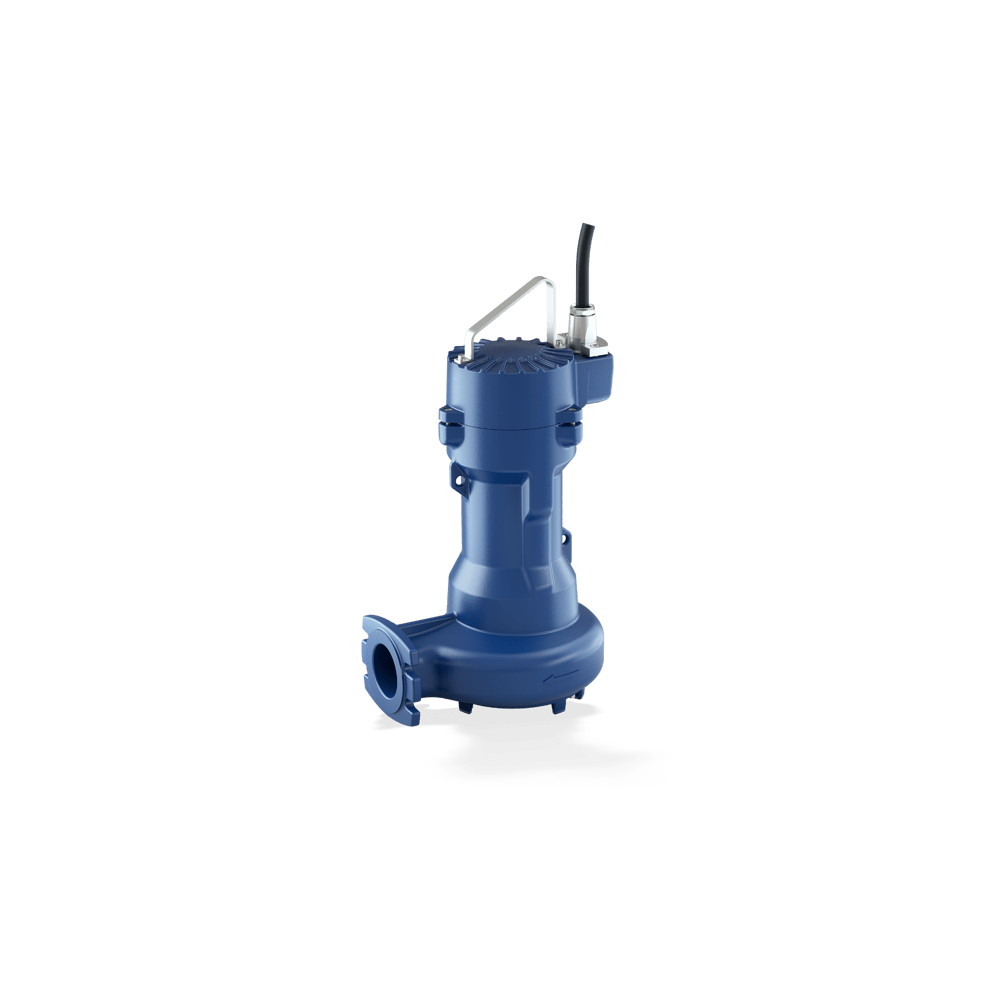

AmaRex Pro
Intelligent, vertical submersible motor pump set for wet installation, single-stage, with open two-vane impeller (D-max), IE5 motor and integrated functions such as automatic clogging detection and deragging. ATEX-compliant version available
-
Description
Main Applications
– Waste water transport
– Waste water management
– Drainage systems
– Waste water treatment plants
– Stormwater transport
– Recirculation
– Sludge treatment -
Advantages
– High efficiency thanks to enhanced power density (Wh/m3), overall efficiency of up to 70 %, lower total cost of ownership
– Non-clogging (no clogging by wet wipes) due to D-max impeller
– Long service life with high operating reliability and durable bearings (100,000 operating hours)
– Environmentally friendly with non-toxic, food-approved oil fill for lubricating the mechanical seal (liquid reservoir)
– Flexible thanks to easy substitution of competitor pumps with a large range of adapter claws and substitution pump app -
Suitability
Submersible motor pump
-
Technical Features
- Max. flow rate
- 300 m3/h
- Max. head
- 35 m
- Max. allowed working pressure
- 4 bar
- Maximum allowable fluid temperature
- 40 °C
-
Downloads
Click below to download
Amarex Pro (2583.021_EN)
AmaRex Pro, with ATEX (2583.8530-1_EN)
