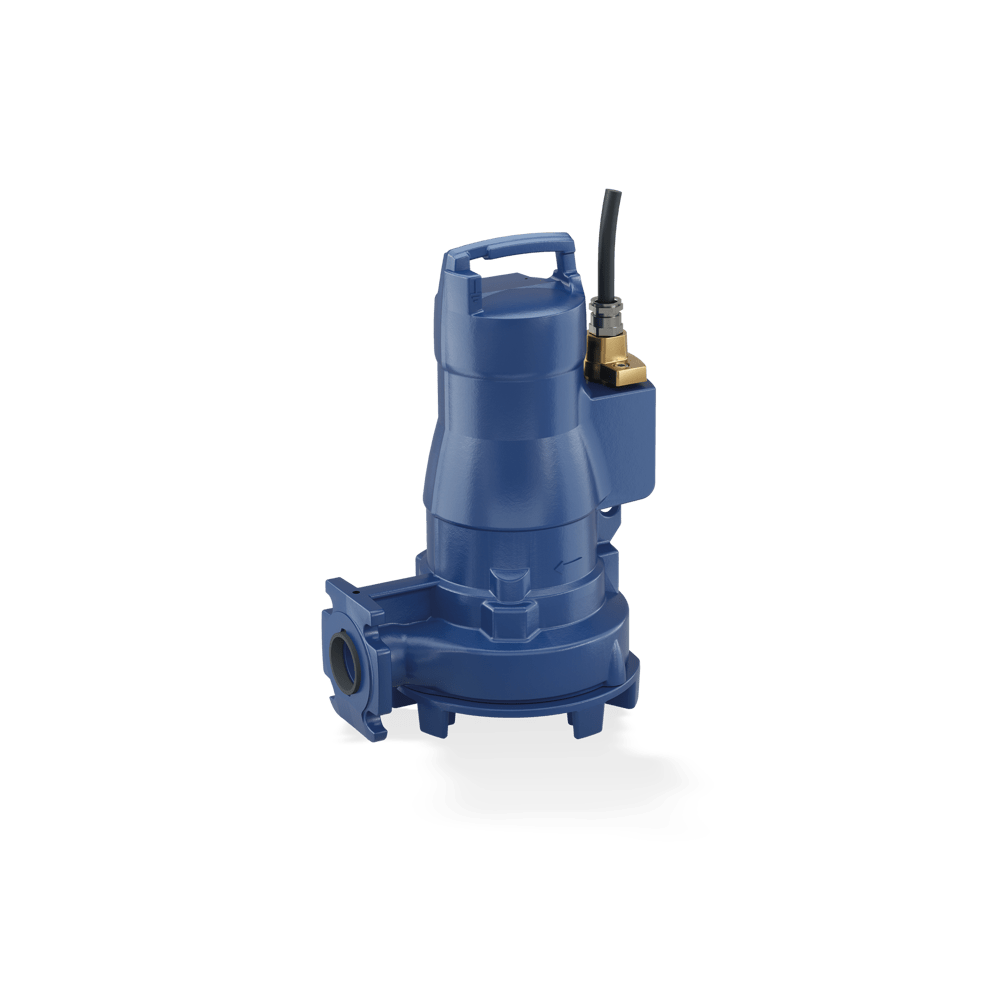

Amarex NS

– Easy and fast installation/removal with polarised, absolutely watertight cable entry and KSB plug-type connection ensuring correct installation
– Motor absolutely watertight, also in the event of damage to the cable sheath and core insulation, with individually stripped, tinned and resin-sealed conductors
– High operating reliability with optimum motor selection for duty type S1, thermal class F, explosion-proof variant in “ATEX T4, FM/CSA Ex Class I, Division 1, Groups C & D, T4”
– Long service life with shaft made of corrosion-resistant stainless steel
– Zero maintenance, ideal for continuous duty, with long-life bearings sealed on both sides, grease-packed for life
– Environmentally friendly, non-toxic, food-approved oil fill for lubricating the mechanical seal (liquid reservoir)
– Energy-saving design with optimised hydraulic system and high efficiency
– Reliable and non-clogging design with optimised cutter (S impeller)
– Close-coupled pump design prevents risk of leakage (pump volute casing and motor housing cast as a single piece)
– Stationary pump sets easy to install and remove with automatic, bolt-free connection; leakage prevented by elastic sealing elements
– Ease of service with wetted hexagon socket head cap screws made of stainless steel which are easy to undo even after years of operation
– Double safety by two bi-directional mechanical seals with oil reservoir filled with environmentally friendly oil
– Well suited for mechanical seal with covered spring for abrasive and aggressive fluids
– Only one set of spare parts for all pump sizes thanks to modular design system

Submersible motor pump

Click below to download

2-page product description Amarex IN (2563.024_EN)
Amarex N S 32-160; UKCA (2563.867_EN)
