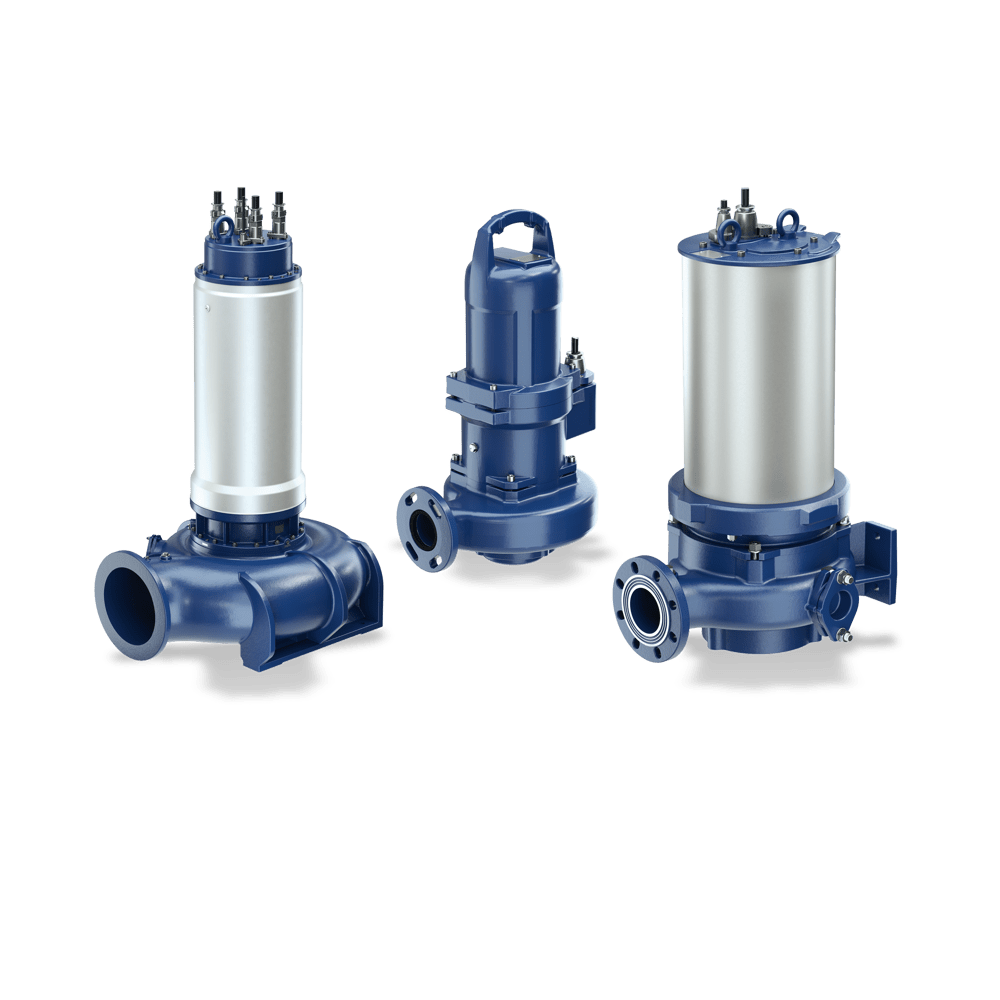

Amarex KRT
Horizontal or vertical single-stage submersible motor pump in close-coupled design, with various next-generation impeller types, for wet or dry installation, stationary or transportable version, with energy-saving motor and models for use in potentially explosive atmospheres.
-
Description
Main Applications
– Waste water management
– Service water supply systems
– Disposal
– Waste water treatment plants
– Sludge disposal -
Advantages
– Absolutely water-tight resin-sealed cable entries prevent any water from entering the motor – even in the event of a damaged cable.
– Reliable operation ensured by leakage sensors signalling any ingress of moisture into the motor
– Reliable operation ensured by sensors monitoring the motor temperature and preventing overheating
– Non-clogging low-maintenance design with large free passages reduces clogging risk and, consequently, maintenance work.
– High-efficiency motors and variable hydraulic systems for optimum hydraulic efficiency and energy efficiency
– Material variants C1 and C2:
– Long service life due to corrosion-resistant wetted parts made of stainless steel -
Suitability
Submersible motor pump
-
Technical Features
- Max. flow rate
- 10080 m3/h
- Max. head
- 120 m
- Max. allowed working pressure
- 12 bar
- Maximum allowable fluid temperature
- 60 °C
-
