Marine Panel & Stack Water Pressure Systems

Xylem’s Jabsco Marine Panel & Stack Water Pressure Systems are fully assembled water pressure systems for your onboard freshwater setup. Systems are available either stacked or mounted to a panel and include all the necessary components to meet your setup needs.

Stacked Systems

Each Jabsco marine stacked system includes single or double water pressure pumps, in-line strainers, and an accumulator tank, pre-mounted on a metal bracket for quick and easy installation. Our stacked systems are assembled using Xylem’s Jabsco Par-Max HD pumps. Par-Max HD pumps are tailored for freshwater delivery applications and feature robust, wide diameter motor and cast aluminum lower housing for exceptional life, even at high pressures.

Panel Systems

Jabsco panel systems are fully assembled with pump, pressure switch, accumulator tank, and strainer and are mounted on one board for rapid and easy installation. Panel systems are ideal for up to four outlets.

Model Numbers

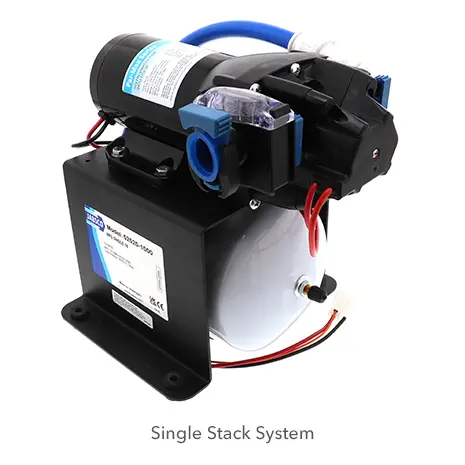

• 52520-1000 12V Single stack system
• 52530-1000 12V Double stack system
• 52530-1100 24V Double stack system
• 59451-0012 Panel system
• 59451-0024 Panel system
• 59451-1012 Panel system
• 59451-1024 Panel system
