Description
Accommodating flow rates up to 6 GPM (22.7 LPM) and pressure up to 70 PSI (4.8 bar), the Flojet VersiJet Series is equipped to tackle a variety of industrial applications, including agricultural, construction, and disinfection and sanitization, that require spraying, fluid transfer, cooling, filtration, dispensing, and pressure boosting.
Backed by the industry-leading experience of Xylem’s Flojet brand and its diaphragm pump technology, the Flojet VersiJet Series is the product to trust if you need a robust and long-lasting pumping solution.

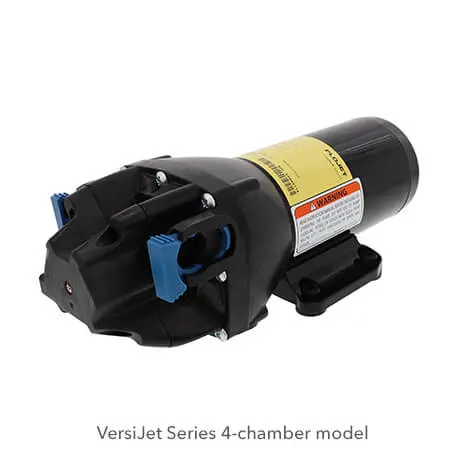

4-Chamber Model Numbers
- Q351F-118S-2P: 12VDC 3.5GPM (13.2 LPM) S/E 60PSI (4.1 BAR)
- Q351F-168S-2P: 12VDC 3.5GPM (13.2 LPM) S/V 60PSI (4.1 BAR)
- Q351F-16N7-2P: 12VDC 3.5GPM (13.2 LPM) S/V No Switch
- Q352F-118S-2P: 24VDC 3.5GPM (13.2 LPM) S/E 60PSI (4.1 BAR)
- Q352F-16N7-2P: 24VDC 3.5GPM (13.2 LPM) S/V No Switch
- Q451F-118S-2P: 12VDC 4.5GPM (17 LPM) S/E 60PSI (4.1 BAR)
- Q451F-168S-2P: 12VDC 4.5GPM (17 LPM) S/V 60PSI (4.1 BAR)
- Q452F-118S-2P: 24VDC 4.5GPM (17 LPM) S/E 60PSI (4.1 BAR)
- Q452F-168S-2P: 24VDC 4.5GPM (17 LPM) S/V 60PSI (4.1 BAR)
- Q40FF-118S-2P: 115VAC 4GPM (15.1 LPM) S/E 60PSI (4.1 BAR)
- Q40FF-168S-2P: 115VAC 4GPM (15.1 LPM) S/V 60PSI (4.1 BAR)
- Q40HF-118S-2P: 115VAC 4GPM (15.1 LPM) S/E 60PSI (4.1 BAR) PC
5-Chamber Model Numbers
- R8500134A: 12VDC 5GPM (18.9 LPM) S/V 70PSI (4.8 BAR)
- R8500144A: 12VDC 5GPM (18.9 LPM) S/E 70PSI (4.8 BAR)
- R8500344A: 24VDC 5GPM (18.9 LPM) S/E 70PSI (4.8 BAR)
- R8600134A: 12VDC 6GPM (22.7 LPM) S/V 70PSI (4.8 BAR)
- R8600144A: 12VDC 6GPM (22.7 LPM) S/E 70PSI (4.8 BAR)
- R8600334A: 24VDC 6GPM (22.7 LPM) S/V 70PSI (4.8 BAR)
- R8600344A: 24VDC 6GPM (22.7 LPM) S/E 70PSI (4.8 BAR)
- 08500044A: 115VAC 5GPM (18.9 LPM) S/E 45PSI (3.1 BAR)
- 08500500A: 115VAC 5GPM (18.9 LPM) S/E 20PSI (1.4 BAR) PC
- 08600044A: 115VAC 6GPM (22.7 LPM) S/E 35PSI (2.4 BAR)
- 08601044A: 115VAC 6GPM (22.7 LPM) S/E 35PSI (2.4 BAR)
- 08601500A: 115VAC 6GPM (22.7 LPM) S/E 35PSI (2.4 BAR) PC
- 08601501A: 115VAC 6GPM (22.7 LPM) S/V 35PSI (2.4 BAR) PC
-
Advantages
Product Features
- Co-molded four and five chamber diaphragm design with cast aluminum lower housing for durability even at high pressures
- Heavy duty motor for long life
- Sealed motor and pressure switch for IPX6 ingress protection
- Flow rates up to 6 GPM (22.7 LPM) and pressures up to 70 psi (4.8 bar)
- Various elastomers for compatibility with a broad range of fluids including harsh and abrasive chemicals
- Versatile installation due to self-priming capability
- Able to run dry without damage
- Quick-connect ports for easy installation and servicing
-
Suitability
Diaphragm Pumps
-
Technical Features
VersiJet Series 4-Chamber Models 5-Chamber Models PUMP DESIGN Permanent Magnet TENV (non-ventilated) Permanent Magnet TENV (non-ventilated) VOLTAGE 12V DC, 24V DC 12V DC, 24V DC, 115V AC MAX FLOW RATE 4.5 GPM (17.1 LPM) 6 GPM (22.7 LPM) DUTY CYCLE Intermittent Intermittent MAX PRESSURE 60 psi (4.1 bar) 70 psi (4.8 bar) PORTS 3.5 GPM – 1/2 inch (13mm) Straight Hosebarb; 4.5 GPM – 3/4 inch (19mm) Straight Hosebarb 4 GPM – 1/2 inch (13mm) Straight Hosebarb; 5 and 6 GPM – 3/4 inch (19mm) Straight Hosebarb PUMP HEAD Glass-filled polypropylene Glass-filled nylon Glass-filled polypropylene DIAPHRAGM EP/PP blend EP/PP blend CHECK VALVE EPDM, FKM EPDM, FKM LIQUID TEMPERATURE RANGE 40°F (4°C) to 140°F (60°C) 40°F (4°C) to 140°F (60°C) CERTIFICATIONS CE, RoHs, IPX6 CE, RoHs, IPX6 WEIGHT 6.4 lbs (2.9 kg) 7.6 lbs (3.5 kg) -
