Description

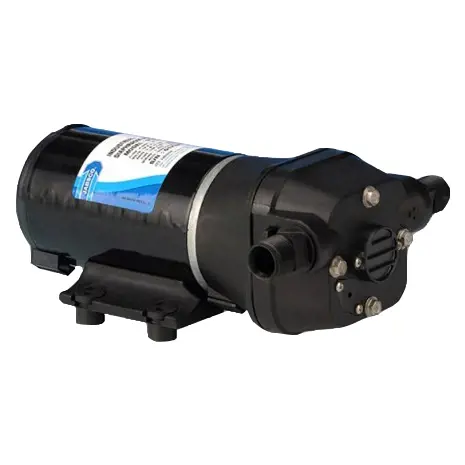

Xylem’s Jabsco 31800 Industrial Diaphragm Pumps provide excellent service in the following applications:
Construction
Water supply to the spray bars of road rollers and other compaction equipment, street sweepers, and truck mounted dust control systems.
Agricultural
Supply pump for herbicide and pesticide
Sprayers and spray boom equipment.
Industrial
- Fluid transfer applications for mild acids and bases.
- Chemical feed pump.
- Washing fluid supply pumps in part washing systems.
- Machine coolant pump.
- Concrete saw lubricant supply pump.
- Recirculating pumps in filtering systems.
Note: Viton equipped models are not suitable for potable water applications.
Model Numbers
- 31800-0092
- 31800-0094
- 31801-0092
- 31801-0094
- 31801-0115 3
- 31801-1305 3
- 31820-0492
- 31820-0494
- 31801-0092
- 31801-0094
-
Advantages
Product Features
- Accommodates flow rates up to 4 GPM (15 LPM)
- Self-priming
- Can run dry without damage
- Thermal overload protected motor
- Snap-in port adapters
- Low amp draw
- Compact size
- Quiet running
-
Suitability
Diaphragm Pumps
-
Technical Features
Model 31800-0092 31800-0094 31801-0092 31801-0094 31820-0492 31820-0494 31801-0092 31801-0094 Flow Rate 4 GPM (15 LPM) 4 GPM (15 LPM) 4 GPM (15 LPM) 4 GPM (15 LPM) 3 GPM (12 LPM) 3 GPM (12 LPM) 3 GPM (12 LPM) 3 GPM (12 LPM) Voltage 12 V DC 24 V DC 12 V DC 24 V DC 12 V DC 24 V DC 12 V DC 24 V DC Amp Draw 6 A 3 A 6 A 3 A 5 A 3 A 6 A 3 A Pressure Switch Setting No switch No switch 20psi (1.4bar) Cut-In, 40psi (2.8bar) Cut-Out 20psi (1.4bar) Cut-In, 40psi (2.8bar) Cut-Out No switch No switch 20psi (1.4bar) Cut-In, 40psi (2.8bar) Cut-Out 20psi (1.4bar) Cut-In, 40psi (2.8bar) Cut-Out
