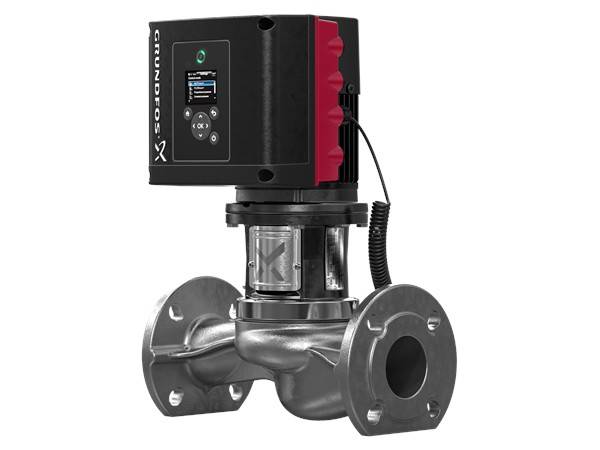

TPE3 (I)
Grundfos TPE3 (I) pumps with stainless steel pump housing and are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as hot water recirculation. The pumps are fitted with frequency controlled motors and differential pressure/temperature transmitter.
-
Description
TPE3 (I) in-line pump for smarter performance
The highly efficient, low-energy TPE3 (I) stainless steel in-line pump comes with Grundfos AUTOADAPT technology and integrated speed control for automatic adaptation of performance to current conditions. Simply plug in and let the pump optimise the systems pressure and flow based on the differential temperature or pressure. Thanks to its close-coupled design, the pump is less sensitive to impurities in the pumped liquid, while its electro-coated surfaces protect against corrosion. This robust unit is suitable for a wide range of applications, including hot water recirculation and domestic, commercial and industrial water supply, heating and cooling systems.
-
Suitability
Commercial heating
Commercial air conditioning
District heating -
Technical Features
Liquid temperature -25 .. 120 °C
Max. flow 60 m³/h
Max. head 25 m
Max. operating 10 bar -
