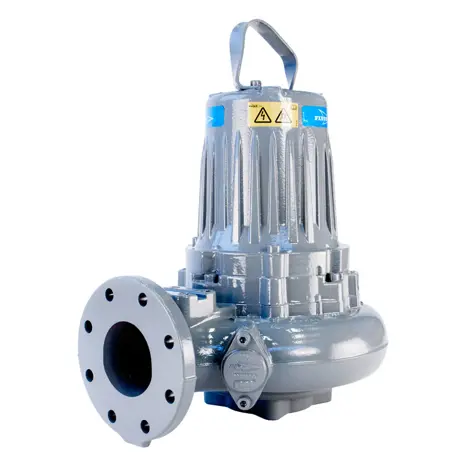

Flygt Chopper Pump F 3127

WASTEWATER CHOPPER PUMP WITH N-TECHNOLOGY

The Flygt F 3127 pump features patented Flygt N-technology, which is renowned for its self-cleaning capabilities and sustained high efficiency. The chopper pump performs like no other, handling whatever goes down the drain — from plastic bottles and wood to clothing and other debris.

Flygt F pumps feature the patented Flygt N-impeller, which rotates inside a chopper insert ring. This rotation cuts all types of hard-to-pump solids, such as fibrous material, textiles and other debris, into small, easy-to-pump pieces. The well proven Flygt F-pump demonstrates unmatched reliability in installations worldwide.

Cost-effective operation

Flygt F 3127 pump transports tough solids and reduces operation and maintenance costs. Under extreme conditions, our energy-efficient chopper pumps run continuously with sustained hydraulic efficiency in heavy-duty applications such as:

• Heavy-duty wastewater applications
• Food processing facilities
• Pulp and paper mills
• Heavy-duty sludge pumping
• Aquaculture
• Agricultural facilities
• Correctional facilities
• Public access facilities

ENGINEERED FOR LONG LIFE

• Replaceable chopper insert ring made of Hard-Iron™ material for tough wastewater applications where cutting is required
• Hard Iron™ impeller suitable for cutting demands and with exceptional wear resistance in tough wastewater applications
• Short shaft overhang reduces shaft deflection and increases seal and bearing life
• Motor designed for submersible use. Heat is concentrated to the stator core for improved cooling properties.
• Double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten carbide (WCCR) or Silicone carbide (SiC) depending on pumped media.
• Griplock™ seal system. Secure locking to the shaft, no rubber friction, no grub screws and no shaft damage.
• Motor cable SUBCAB^® specially developed for submersible use.

Wet Pit (P)

​​Semi permanent, submersible pump installation. Wet pit arrangement with the pump installed on twin guide bars with automatic connection to the discharge pipe.​​

Portable (S)

​​​Portable, submersible pump installation. Portable pump with hose coupling or flange for connection to the discharge pipe.​​

Dry Installation vertical (T)

​​​Vertical, permanent, dry pump installation. The submersible pump is installed in a dry pit, with flange connection to suction and discharge piping.​​

Dry Installation (Z)

​​​Horizontal, permanent, dry pump installation. The submersible pump is installed in a dry pit, with flange connection to suction and discharge piping. ​​
