Description

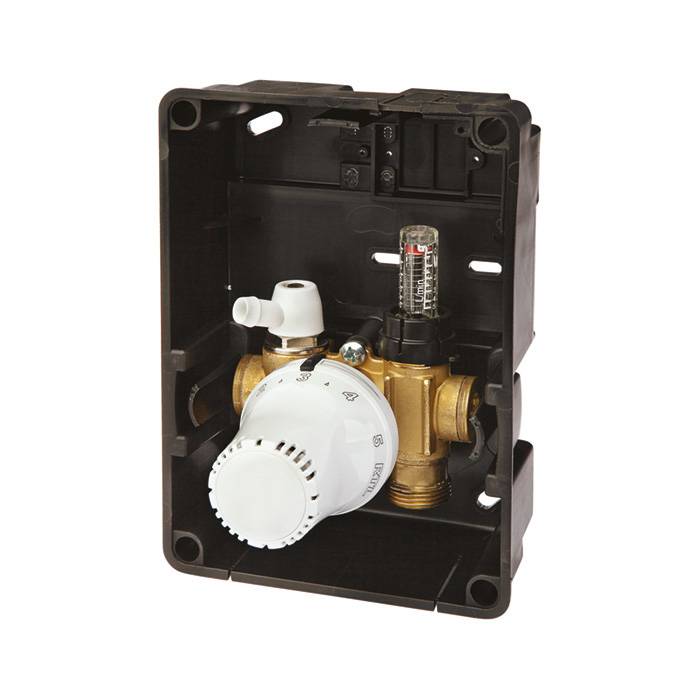

Regulation box for return flow temperature-dependent regulation of surface heating systems.
Basic features:
Wall installation box with pre-mounted valve manifold with vent
Valve module connection with G 3/4″ M Euro taper for connection with compression adapters on the pipe side
External RTL head
Fill and drain valve
Protective cap in EPS
White plastic wall cover (similar to RAL 9016)
Fixing brackets for depth adjustment of the wall box
Prepared for flexible installation in stud walls (installation set F11863)
Exclusiv version additional with:
Topmeter for flow indication and regulation
Safety temperature switch -
Technical Features
Components made of brass and plastic
Sealing materials: EPDM
Max. primary operating temp.: 80 °C permanent temp., 95 °C short-term (the max. permissible supply flow temp. of the surface heating must be respected)
Max. operating pressure: 6 bar -
