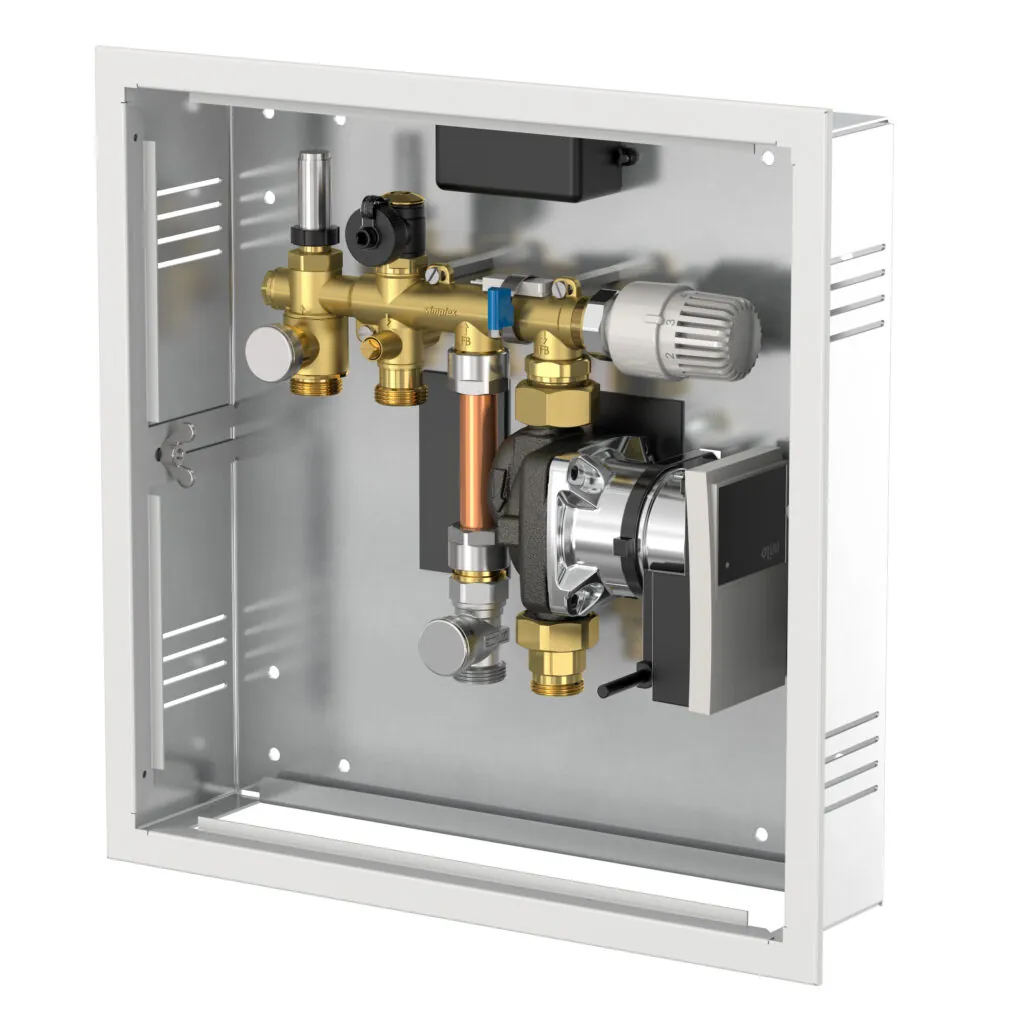

Komfort System Regulation Box

The Komfort regulation box is used to operate a single room surface heating system, allowing for room temperature-dependent regulation of the surface heating system while limiting the supply temperature (setting range 10 – 50 °C).
Operation by means of an electric room temperature controller (not included, please order separately).
Features:
Metall wall installation box, with pre-installed valve module with venting and draining
Valve module connection with G 3/4″ M Euro taper for connection with compression adapters on the pipe side
With filling equipment
Wall covering consists of a coated case with depth adjustment
Safety temperature switch
Shut-off set with hose connection for easy handling during commissioning and maintenance work
Regulation head for setting the supply temperature
Topmeter for flow indication and regulation
Pre-adjustable circulating pump
“Easy-connect” plug-in connection for electrical connection
Primary circuit connections with separate shut-off
Exchangeable primary circuit connection, right or left
Extension for larger heating surfaces
Built into masonry or dry construction
Temperature already limited in the supply flow
Constant heat distribution
Primary circuit connections with separate shut-off
Complete package pre-assembled and pre-wired in the box
