Description

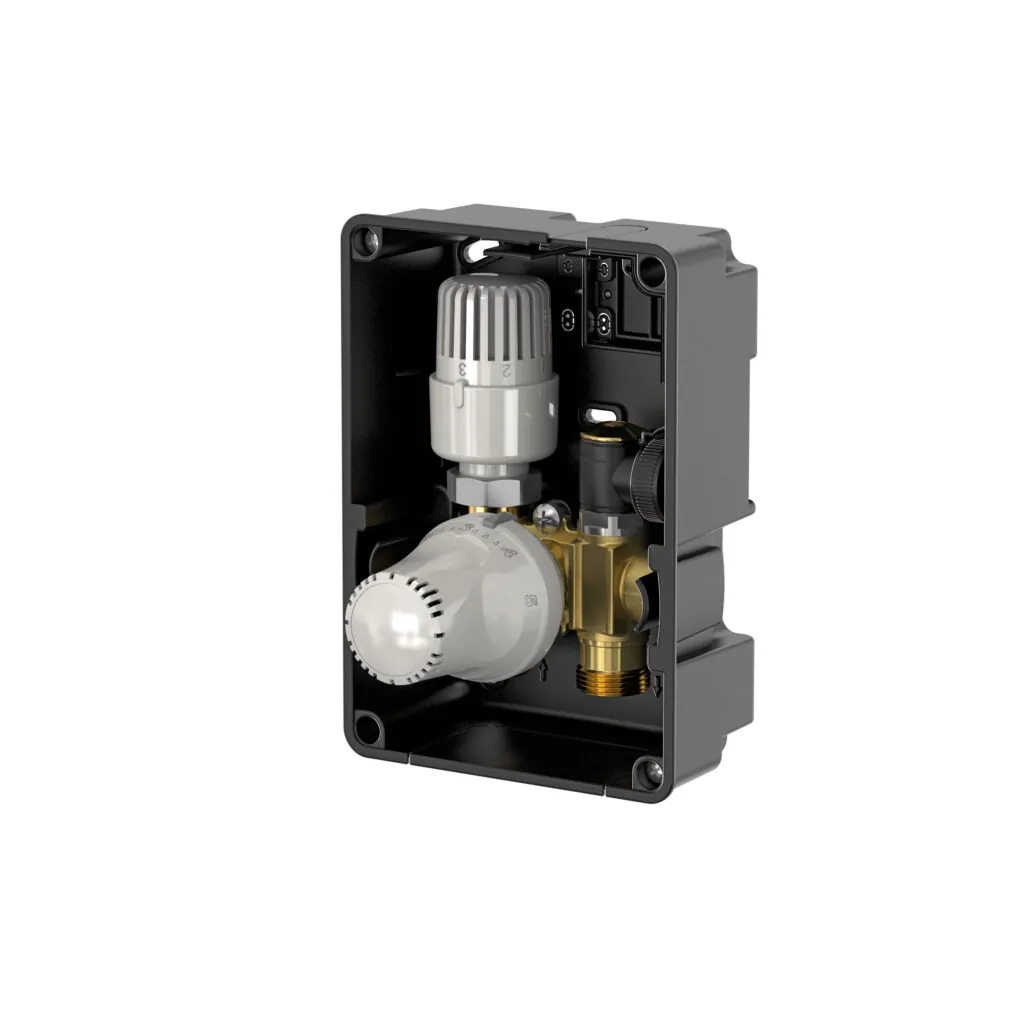

Regulation box for room temperature-dependent regulation of surface heating systems with adjustable return flow temperature limitation.
Features:
Wall installation box with pre-mounted valve manifold with vent
Valve module connection with G 3/4″ M Euro taper for connection with compression adapters on the pipe side
Protective cap in EPS
White plastic wall cover (similar to RAL 9016)
Fixing brackets for depth adjustment of the wall box
Prepared for flexible installation in stud walls (installation set F11863)
Fill and drain valve
External thermostatic head for room temperature setting
Thermostatic valve with presetting
Internal RTL head for return flow temperature limitation -
Technical Features
Components made of brass und plastic
Sealing materials: EPDM
Max. primary operating temp.: 80 °C permanent temp., 95 °C short-term (the max. permissible supply flow temp. of the surface heating must be respected)
Max. operating pressure: 6 bar -
