Description

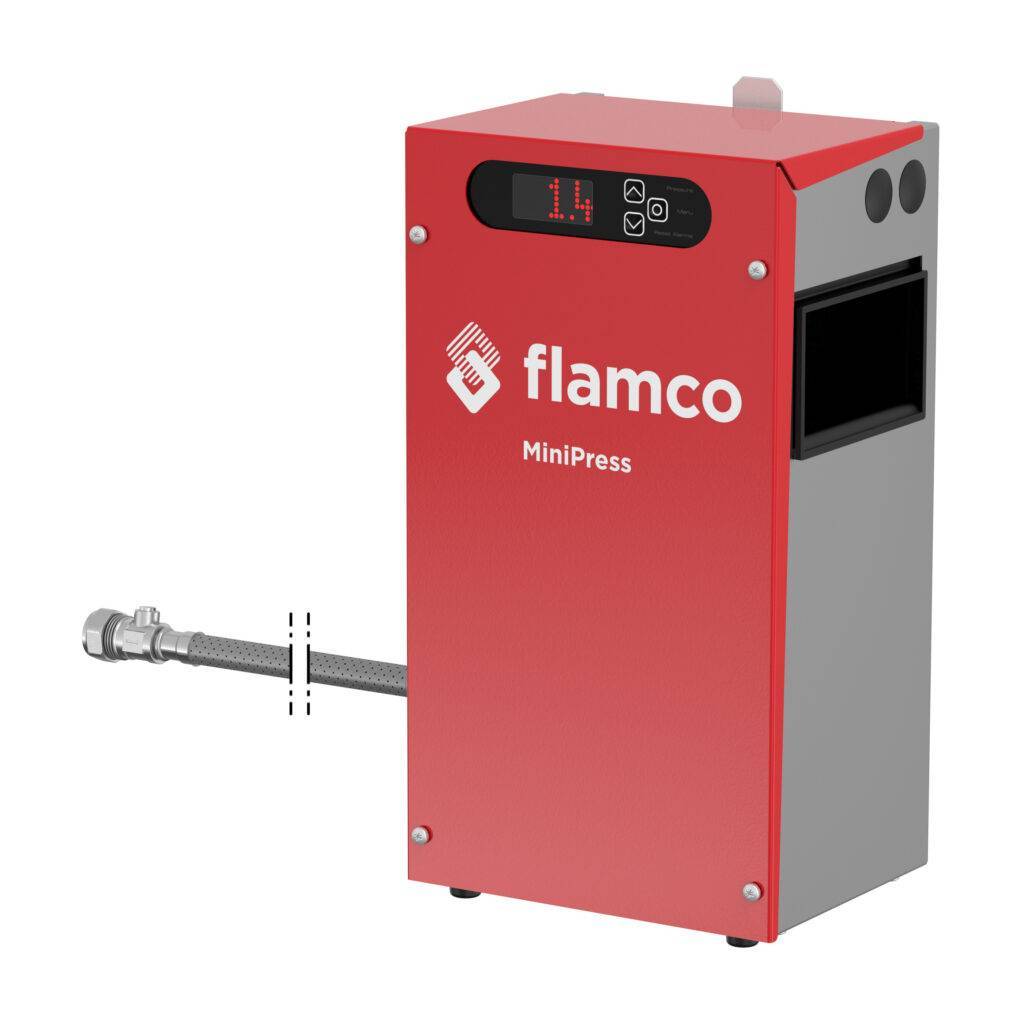

The MiniPress is a compact and totally enclosed digital pressurisation unit with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.
Product features
Pressure setting in 0.1 bar increments.
Volt free contacts: 1x Common Alarm.
Delivery flow (at 1 bar): 0.5 l/min.
Compact.
Intuitive, easy-to-use display – Commission in 30 secs.
Visible AB Air Gap – Water authority compliant.
Improved leak protection – additional safety feature. -
Technical Features
Maximum operating conditions
Min./ Max. delivery pressure: 0.7 / 3.0 bar.
System temperature: 5 ºC / 85 ºC.
Supply temperature: 5 ºC / 45 ºC.
Max./ Min. Supply (Mains) Pressure: 0.5 / 6.0 bar.
System PN rating: PN6.
Max. Delivery (Topup) Pressure: 3.0 bar.
Relative humidity 60….70% non-condensing.
Certifications and Standards Applied
Fluid Protection Category 5.
IEE – Electrical Safety Guidance.
EMC 2004/108/EC.
BS 7074 Parts 1 to 3.
Machinery Directive 2006/42/EC, UK Supply of Machinery (Safety) Regulations 2008.
Electronic Components comply with the EMC Directives, UK EMC Regulations 2016.
EN 61000-6-2: Generic Standards – Immunity standard for industrial environments.
EN 61000-6-3: Generic Standards – Emission standard for residential, commercial and light industrial environment.
Low Voltage Directive 2014/35, Electrical Equipment (Safety) Regulations 2016.
CE marked components, where applicable.
Breaktank with AB airgap according to BS EN 13077 2023 AB. -
