Description
Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

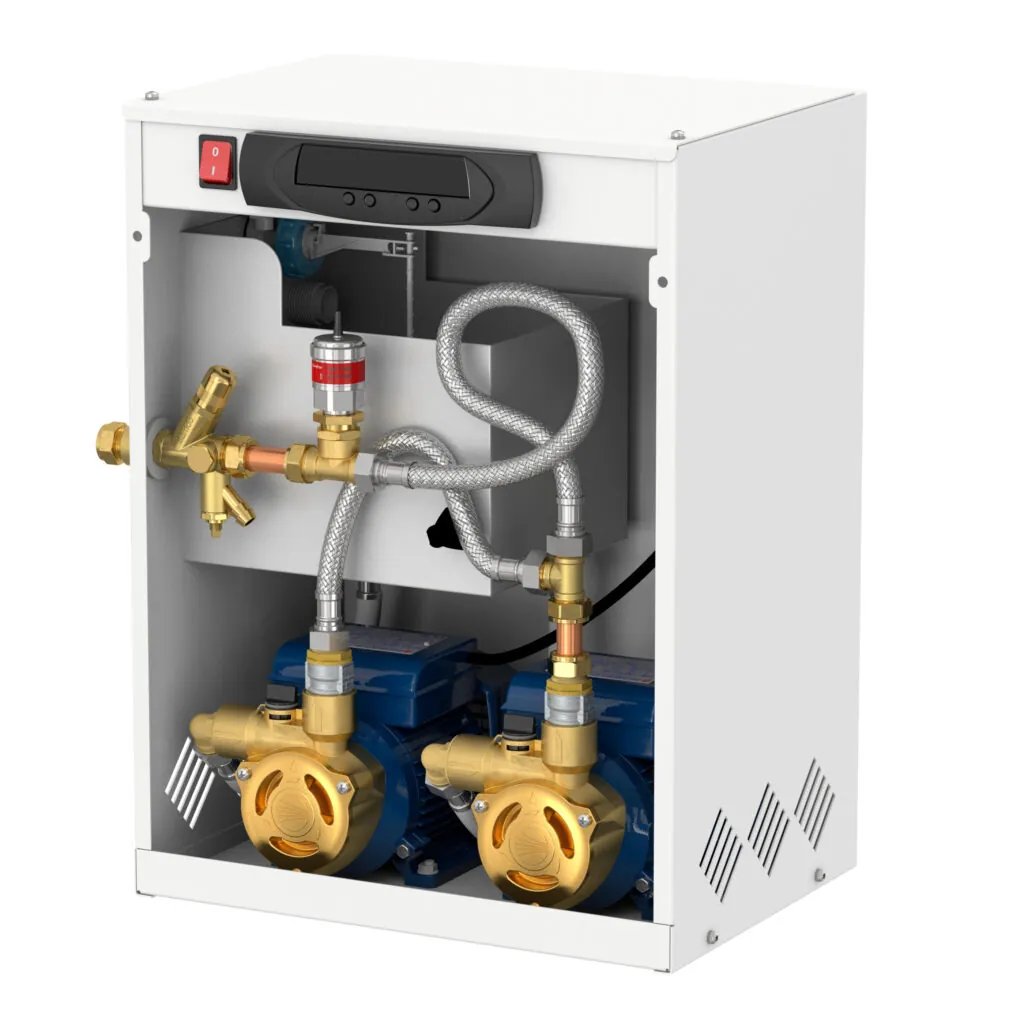

The Flexfiller Midi is a wall mounted, flow rate (up to 12 l/min) top-up pressurisation unit with 4 litre internal break tank. Ideal for Industrial, commercial or large domestic applications. Available in single or twin pump configuration.
Application:
Commercial, Industrial and Residential.
System Volume (Guide): < 50,000 litres.
Product Features:
For system volumes up to 50,000 litres.
Fluid Protection Category 5 (AB Weir Overflow).
System fill mode.
Onscreen Service Reminder – 12 Months.
Electric pump, 230V 50Hz 1ph.
Colour: White (RAL 9003).
MODBUS RTU Communication Protocol.
Password protected.
Sequential programming menu.
Pressure setting in 0.1 bar increments.
Pump pulse option.
Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O). -
Technical Features
Operating Conditions:
System temperature range at point of connection: 5 ºC / 85 ºC.
Ambient temperature range: 5 ºC / 40 ºC.
Pressure rating: PN 10.
Relative humidity 95% non-condensing.
Noise Rating Data: < 75 dBA.
Certifications and Standards Applied:
PED 2014/68/EU Sound Engineering Practice.
IEE – Electrical Safety Guidance.
EMC 2004/108/EC.
BS 7074 Parts 1 to 3.
Machinery Directive 2006/42/EC.
Electronic Components have been tested and comply with the EMC Directives.
EN 61000-6-1: Generic Standards – Immunity standard for industrial environments.
EN 61000-6-2: Generic Standards – Immunity standard for industrial environments.
EN 61000-6-3: Generic Standards – Emission standard for residential, commercial and light industrial environment.
CE marked components, where applicable.
WRAS approved float valve to BS1212.
IP54 (BS EN60529) rated controller.
Material of Construction:
Cabinet: Mild steel CR4 Powder Coated.
Float: WRAS approved.
Break Tank: Polypropylene.
Connection: Brass / Polypropylene.
Pipework: Braided Flexhose / EPDM / Copper.
Finish: Powder coated.
Valves: Brass / PTFE. -
