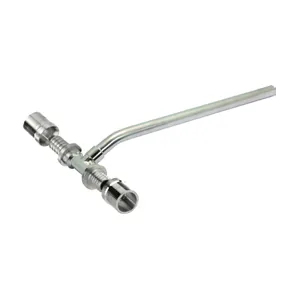

Description
A range of fittings from 12 to 32 mm.
PEX slide Max fittings are to be installed with hydraulic tool.
Benefits
Sliding system = axial crimping, ensures a reliable connection.
Comap slide fittings are quick and easy to use.
Fittings made from DZR brass.
They cannot be disassembled and can be installed in concealed installations. -
Technical Features
PEX Slide Max system is designed for the following applications:
Sanitary water: +5 °C to +70 °C (operating temperature) and 10 bar (maximum operating pressure).
Heating and cooling: +5 °C to +80 °C (operating temperature) and 10 bar (maximum operating pressure).
Pexy Slide Max fittings must be used with Comap pipes only. -
