Description
Indirect unvented cylinders for potable water installations.

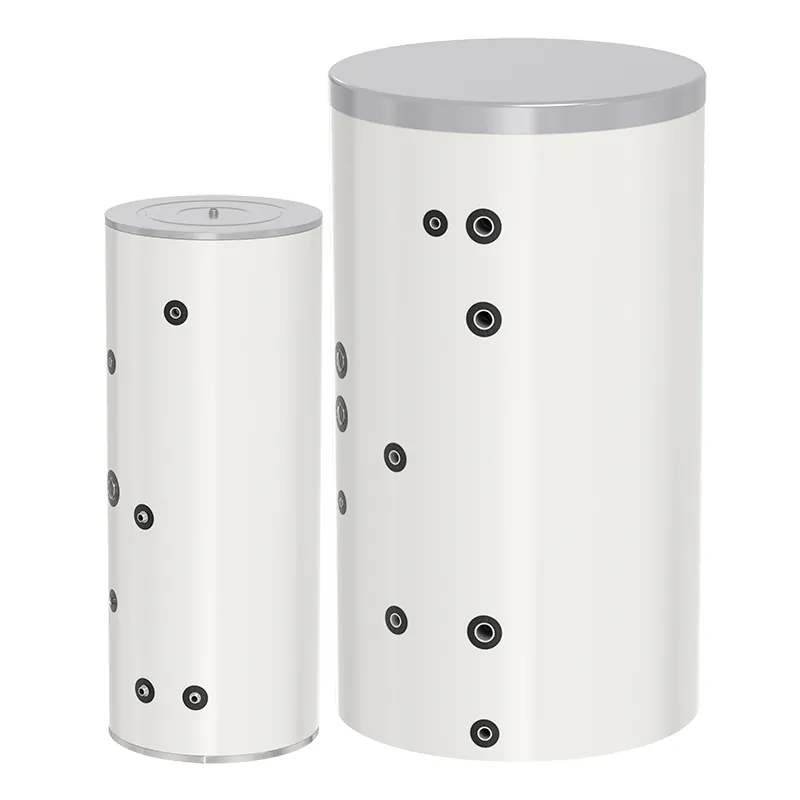

Economical, high performance, stainless steel vessels for hot and cold water storage. Tanks for use in all closed circuit water supply systems, demand satisfied by storage volume.Flextherm Supastor indirect unvented cylinders have been designed around UK specifications, being compact, easy to install with ‘in-line’ connections and are supplied with all necessary controls including a 2 port motorised valve.
Application of Use: Domestic and Commercial.
-
Technical Features
Technical specification:
Maximum working pressure: 6.0 bar.
Maximum working temperature: 90 °C.
T&P tapping: ¾” F.
T&P pressure setting: 7.0 bar.
T&P temperature setting: 90 °C.
Expansion relief valve setting: 6.0 bar.
Electrical Heaters: 3 kW 230V/50Hz Immersion Heater (Factory standard, but other Immersion heaters can be used (See table for compatibility))
Materials:
Tank: Stainless steel DUPLEX LDX 2101 (EN1.4162).
Coils and Connections: Stainless steel AISI 316L.
Insulation & Casing:
125 – 500 L: 50 mm CFC-free and HCFC-free polyurethane thermal insulation with Painted Galvanized cardon steel DX51D.
800 – 1000 L: 100 mm HITEC thermal insulation with ABS Silver Grey Casing. -
